ERM 160-8-CB-090-B
ID 310550
- Torque: 75 Nm
Technical details
| ピークドライブモーメント [Nm] | 2.3 |
|---|---|
| ピーク出力モーメント [Nm] | 75.0 |
| 最大駆動速度 [1/min] | 3000.0 |
| 最大出力速度 [1/min] | 62.5 |
| 最大許容質量慣性モーメント [kgm²] | 20.0 |
| 繰り返し精度 [°] | 0.035 |
| 軸方向の振れ [mm] | 0.03 |
| トランスミッション | 48.0 |
| 力 Fx max. [N] | 1500.0 |
| 力 Fz 最大 [N] | 3000.0 |
| トルク My 最大 [Nm] | 450.0 |
| フルードフィードスルーの数 | 8.0 |
| 最大作動圧 [bar] | 8.0 |
| 重量 [kg] | 15.5 |
| 最低周囲温度 [°C] | 5.0 |
| 最高周囲温度 [°C] | 55.0 |
| IP 保護等級 | 65 |
| センターボア径 [mm] | 22.0 |
| 長さ X [mm] | 160.0 |
| 幅 Y [mm] | 251.2 |
| 高さ Z [mm] | 137.5 |

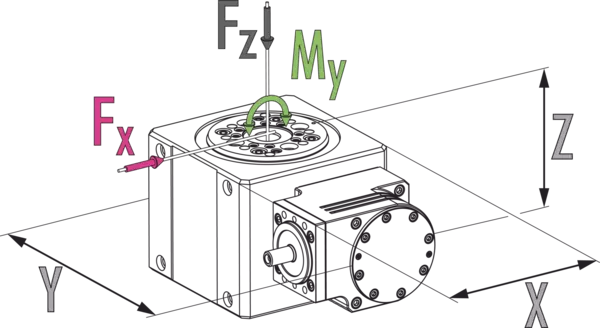

寸法と最大荷重
許容最大慣性 J
寸法と最大荷重
トルクと力が同時に発生することがあります。アプリケーションによってはさらに高い値に達することがありますので、お問い合わせください。
許容最大慣性 J
- X-axis:
- 旋回時間
- Y-axis:
- 慣性
- X-axis top:
- サイクル数 / 時
General notes about the series
Swiveling time
are purely the times of the module to rotate from rest position to rest position. Relay switching times or PLC reaction times are not included in the above times and must be taken into consideration when determining cycle times. Load-dependent rest periods may have to be included in the cycle time.
Repeat accuracy
Is defined as the spread of the target position after 100 consecutive positioning cycles.
Middle attached load
intended to represent a typical load. It is defined as the half of the max. possible mass moment of inertia that can be swiveled without restriction, bouncing or hitting, with a centric load and a vertical rotating axis.
Motor torque
For all motor moments from above the rated moment to the maximum motor moment, observe the instructions in the respective product documentation.
Housing material
Aluminum alloy, coated
Material of the (internal) functional components
Steel
Actuation
electrically via an adaptable servo drive
Operating principle
Two-stage hypoid gears
Scope of delivery
Centering sleeves for module mounting and mounting on the output flange, O-rings for compressed air connections on the output flange.
Warranty
24 months
Service life characteristics
on request
