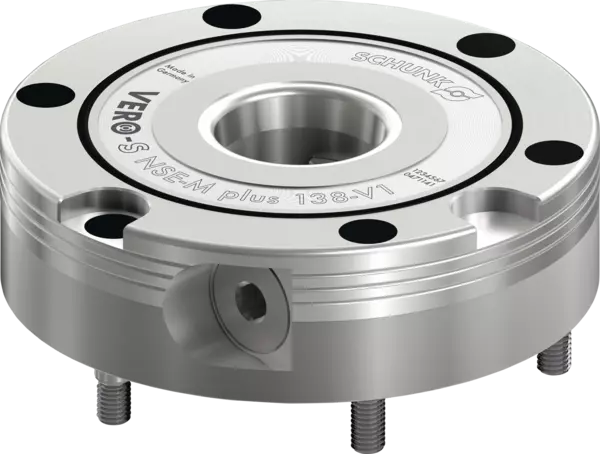

NSE-M plus 138-V1

NSE-M plus 138-V1

Clamping Modules

ID 471141

Ready for shipment from stock
Clamping module standard

Product features:
  • Manually clamped system
  • Anti-rotation protection two-way 90°
Technical data:
  • Dimensions: Ø138 x Ø110 x 43 mm
  • Pull-down force: 2.5 kN
  • Actuation torque: 15 Nm
  • Repeat accuracy: < 0.005 mm
  • Weight: 4 kg
Do you have a question?
Download CAD file
Technical details
Diameter [mm] 138
Pull-down force [kN] 2.5
Actuation angle [°] 110
Unlocking torque [Nm] 15
Repeat accuracy [mm] < 0.005
Weight [kg] 4

Scope of delivery
Clamping module, mounting screws, fitting screw, O-rings, cover caps, actuation key, operating manual; without clamping pins
