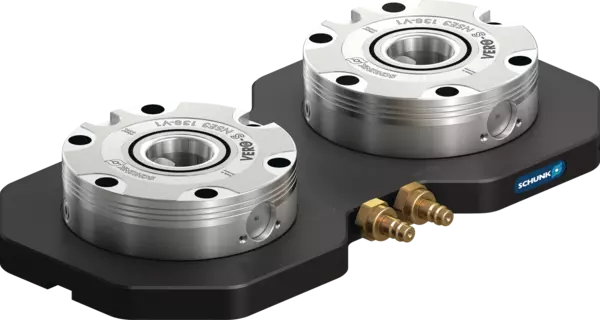

NSL3 200-V1-T
Clamping Stations
ID 1323570
Clamping station standard
- 2-way NSE3 138-V1
- Spring-loaded system - Pneumatically opening
- Turbo function
- Anti-rotation protection two-way 90°
- Dimensions: 399 x 199 x 60 mm
- Pull-down force: 16 kN
- Pull-down force with turbo: 56 kN
- Unlocking pressure: 6 bar
- Weight: 16.7 kg
Technical details
| Length [mm] | 199.0 |
|---|---|
| Width [mm] | 399.0 |
| Pull-down force [kN] | 16.0 |
| Pull-down force with turbo [kN] | 56.0 |
| Unlocking pressure [bar] | 6.0 |
| Weight [kg] | 16.7 |
Scope of delivery
Clamping station, sealing nipple, dust protection caps, operating manual; without clamping pin, without indexing pin, without cylindrical clamps
