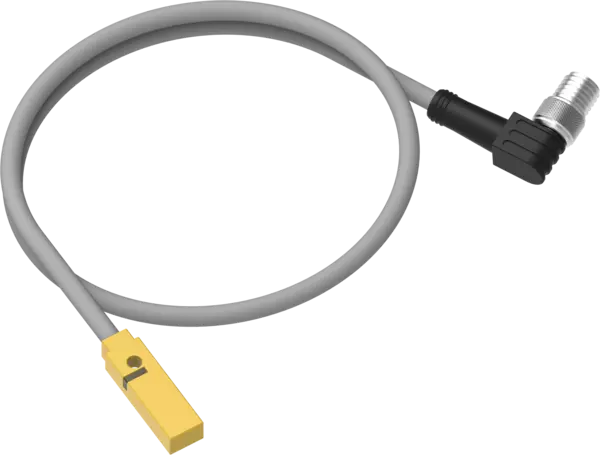

INK 8-SL
Inductive proximity switches
ID 302456
Inductive proximity switch IN, lateral LED
- Switching distance: 2 mm
- Rectangle sensor
- Width: 8 mm
- Height: 5 mm
- Switching type: PNP
- Closer
- Cable length: 200 cm
- Electrical connection: open wire strands
- Nominal voltage: 24 V
Información técnica
| Measuring principle | inductive |
|---|---|
| Switching function | Closer |
| Type of switching | PNP |
| Number of switching points | 1 |
| Switching distance [mm] | 2.0 |
| Switching hysterisis from the nominal switching distance | < 15% |
| Max. switching frequency [Hz] | 2000.0 |
| Min. ambient temperature [°C] | -25.0 |
| Max. ambient temperature [°C] | 85.0 |
| LED display in sensor | yes |
| Type of voltage | DC |
| Nominal voltage | 24.0 |
| Min. operating voltage | 10.0 |
| Max. operating voltage | 30.0 |
| Voltage drop [V] | 1.8 |
| Max. switching current | 0.15 |
| Short circuit protection | yes |
| Protected against polarity reversal | yes |
| Housing material | PP-GF20, yellow |
| Cable connector/cable end | open wire strands |
| Cable length L [cm] | 200.0 |
| Cable diameter D [mm] | 3.0 |
| Cable sheath material | PUR |
| Min. bending radius (dynamic) [mm] | 35.0 |
| Min. bending radius (static) [mm] | 17.5 |
| Weight [kg] | 0.03 |
| Protection class IP (sensor, plugged) | 67 |
| Protection class | II |
*Tested cutting emulsions: r.rhenus TU 43P, Motorex Swisscool Magnum UX 550 and Oemeta 760 (1008339).
Algemene opmerkingen over de reeks
SCHUNK-grijpmodules, roterende en lineaire modules en robotaccessoires moeten worden gecontroleerd met de juiste SCHUNK-sensoren, omdat alles op elkaar is afgestemd.
Als de belangrijkste eigenschappen, zoals schakelafstand, schakelfunctie, hysterese en spanning voldoende gelijk zijn, kunnen in plaats van de inductieve SCHUNK-naderingsschakelaars (IN, INK) doorgaans ook naderingsschakelaars van andere fabrikanten worden gebruikt.
Sensoren van andere fabrikanten die in SCHUNK-producten zijn geïntegreerd, bieden zelden uitstekende schakelresultaten. Bovendien kunnen we geen goede werking of functionele veiligheid ervoor garanderen.
