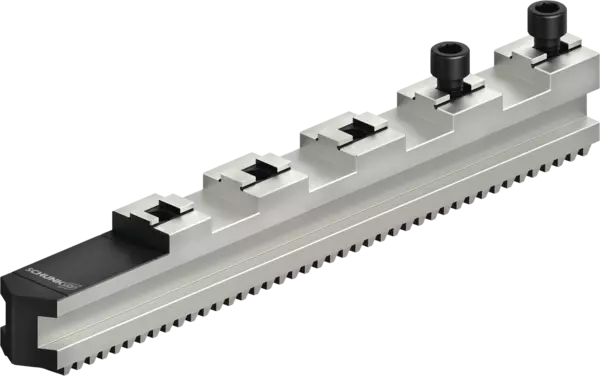

SFGF-L 1000
Base jaws
ID 814835
SFGF-L 1000, Base jaws
Product features:
Product features:
- Serration: Angled serration
- Mounting: Tongue and groove
- Groove width: 30 mm
- Width of path: 18 mm
- Delivery unit: 1 set = 3 pieces
- Scope of delivery: Including cylindrical screws
Technical details
| 제품 그룹 | 베이스 죠 |
|---|---|
| 설치 | 텅앤그루브 |
| 톱니 | 각진 톱니 |
| 슬롯 너비 N [mm] | 30.0 |
| 탭 너비 S [mm] | 18.0 |
| B 너비 [mm] | 45.0 |
| 높이 H [mm] | 55.0 |
| 높이 H1 [mm] | 51.0 |
| 길이 L [mm] | 415.0 |
| 구멍 공간 b [mm] | 60.0 |
| 나사 | M16x1.5 |
| m/set [kg] | 15.96 |
