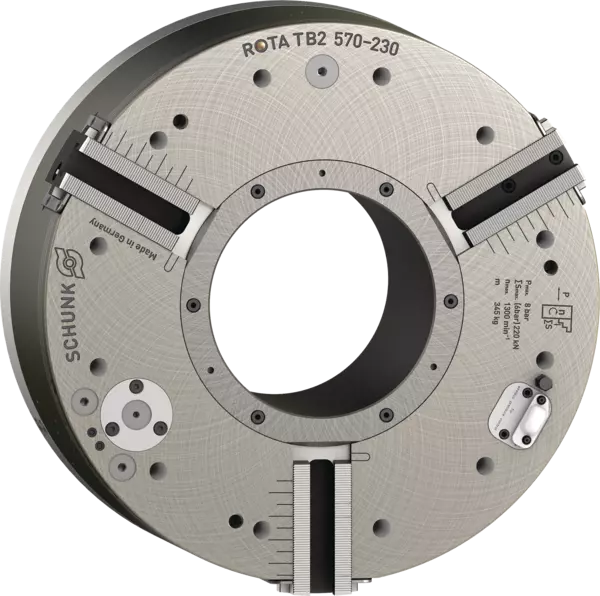

ROTA TB2 570-230 Z415-SV90°
Mandrin tout à l'avant pneumatique à 3 mors
Ident.-Nr. 818212
Dieses Produkt ist abgekündigt und ist nicht mehr erhältlich.
Mandrins de tour automatiques pneumatiques
Information sur l'arrêt de la production :
Information sur l'arrêt de la production :
- Date de fin des ventes: 2023-06-30
- Remplacé par: 0818312
- Mandrin à 3 mors à rampe
- Perçage: 230 mm
- Support de broche: Z415
- Côté mandrin: 230 mm (9.06")
- Côté machine: 230 mm (9.06")
- Interface des mors: 3/32" x 90° Nut 25,5H7
- Course par mors : 11.7 mm
- Force de serrage max. à 6 bars: 220 kN
- Pression d'actionnement max.: 3 - 8 bar
- Vitesse de rotation max.: 1300 1/min
- Poids: 345 kg
Technische Details
| 스핀들 유형 | - |
|---|---|
| 스핀들 크기 | Z415 |
| 톱니 | 3/32" x 90° |
| 최대 회전 속도 [1/min] | 1300.0 |
| 최대 고정력(6바 기준) [kN] | 220.0 |
| 최소 작동 압력 [bar] | 3.0 |
| 최대 작동 압력 [bar] | 8.0 |
| 스트로크/죠 [mm] | 11.7 |
| 6 바에서 공기 소모/죠 스트로크 [l] | 39.9 |
| 관성의 모멘트 [kgm²] | 17.0 |
| 중량 [kg] | 345.0 |
Clamping force-RPM-diagram
Clamping force-RPM-diagram
- X-Achse:
- n [min-1]
- Y-Achse:
- Fsp [kN]
- brown
-
SHB 400
- red
-
SWB 400
- yellow
-
SWB-AL 400
- green
-
Required minimum clamping force Fspmin 33%
Scope of delivery
Chuck, T-nuts with screws, chuck mounting bolts, elbow-unions G 3/8 on the distributor ring, couplings for connection to the electric compressed air control unit, eye bolt, operating manual; without distributor ring mounting bracket, without top jaws
