RM 200-W180-1
ID 313008

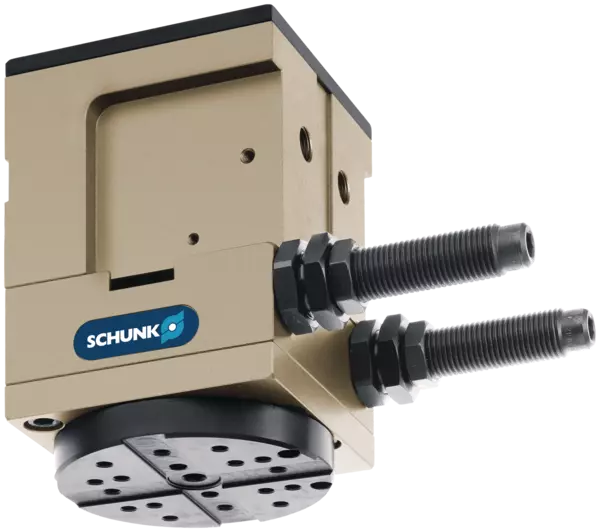

Universal swivel vane RM-W, Size: 200, pneumatic, without feed-through, Shock absorber versions: 1, Angle of rotation: 180 °, End position adjustability: 5 °
- Torque: 4 Nm
Détails techniques
| Angle of rotation [°] | 180 |
|---|---|
| End position adjustability [°] | 5 |
| Torque [Nm] | 4.0 |
| IP protection class | 40 |
| Weight [kg] | 2.1 |
| Swiveling time (1x nominal rotation angle) without attached load [s] | 0.21 |
| Fluid consumption (2x nom. angle) [cm³] | 74.0 |
| Nominal operating pressure [bar] | 6.0 |
| Min. operating pressure [bar] | 3.0 |
| Max. operating pressure [bar] | 8.0 |
| Min. ambient temperature [°C] | 5.0 |
| Max. ambient temperature [°C] | 60.0 |
| Repeat accuracy [°] | 0.044 |
| Length X [mm] | 80.0 |
| Width Y [mm] | 142.0 |
| Height Z [mm] | 115.0 |
| Moment My max. [Nm] | 18.0 |
| Max. axial force Fz max. [N] | 1800.0 |
Shock absorber version -2 should only be used for higher loads.
For configuration of swivel modules, we recommend to use our Toolbox software, which is available online. Verifying the sizing of the selected unit is absolutely necessary, as otherwise overloading may occur.
Other angles are possible on request.
For configuration of swivel modules, we recommend to use our Toolbox software, which is available online. Verifying the sizing of the selected unit is absolutely necessary, as otherwise overloading may occur.
Other angles are possible on request.
Dimensions and maximum loads
Range of use for dampers
Dimensions and maximum loads
The indicated moments and forces are statical values and may appear simultaneously. Throttling has to be done for ensuring that the rotary movement takes place without impact or bouncing. Otherwise the service life reduces.

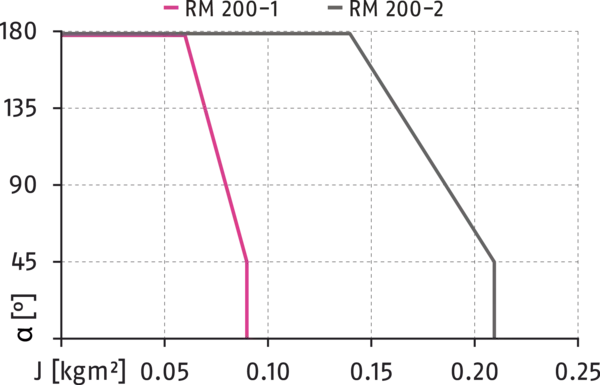

Range of use for dampers
- Axe X:
- Mass moment of inertia
- Axe Y:
- Angle of rotation
시리즈에 관한 일반 참고 사항
반복 정밀도
100회 연속 사이클 동안 말단 위치의 분포로 정의됩니다.
플랜지 위치
항상 왼쪽 말단 위치에 그려짐 여기에서 오른쪽 시계 방향으로 회전합니다. 화살표는 회전 방향을 가리킵니다.
맞춤형 회전 각도
요청 시 더 많은 스위블 각도를 사용할 수 있습니다.
레이아웃 또는 컨트롤 계산
유닛 구성 또는 제어 계산에는 온라인에서 제공되는 Toolbox 소프트웨어 사용이 권장됩니다. 선택 유닛의 크기 검증은 절대적으로 필요합니다. 그러지 않으면 오버로드가 발생할 수 있습니다.
스위블 베인 재료
강철
하우징 재료
알루미늄 합금, 양극 처리
작동
공압, ISO 8573-1:2010 [7:4:4]에 따른 여과된 압축 에어.
작동 원리
날개 선회 유닛
제공 범위
근접 스위치용 브라켓 및 근접 스위치가 없이도 바로 사용할 수 있습니다
보증
24개월
서비스 수명 특징
요청 시
