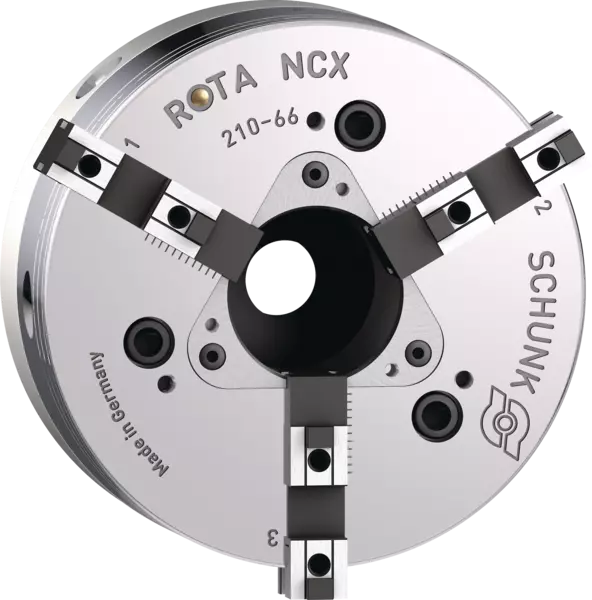

ROTA NCX 210-66 A6-SFGX
3-jaw power chuck with jaw quick-change for short-stroke cylinder
ID 800811
This product has been discontinued and is no longer available.
Alternative products:
Power lathe chuck with standard jaw quick-change system
Discontinuation information:
Discontinuation information:
- End-of-sales date: 2023-06-30
- 3-jaw wedge-bar chuck
- Jaw quick-change system
- Through-hole: 66 mm
- Spindle holder: ISO 702-1 Nr. 6
- Jaw interface: Angled serration
- Stroke per jaw: 4.2 mm
- Tooth pitch: 3 mm
- Piston stroke: 18 mm
- Max. clamping force: 80 kN
- Max. actuating force: 45 kN
- Max. rotational speed: 5000 1/min
- Weight: 22 kg
Technical details
| 主轴类型 | ISO 702-1 |
|---|---|
| 主轴尺寸 | Nr. 6 |
| 细齿 | 斜细齿 |
| 最大旋转速度 [1/min] | 5000.0 |
| 最大夹持力* [kN] | 80.0 |
| 最大启动力 [kN] | 45.0 |
| 行程/卡爪 [mm] | 4.2 |
| 齿距 [mm] | 3.0 |
| 活塞行程（H） [mm] | 18.0 |
| 惯性矩 [kgm²] | 0.13 |
| 重量 [kg] | 22.0 |
夹持力-RPM 图
夹持力-RPM 图
- X-axis:
- n [min-1]
- Y-axis:
- Fsp [kN]
- brown
-
SHF 200
- red
-
SFA 200
- yellow
-
SFA-AL 200
- green
-
所需的最小夹持力 Fspmin 33%
