ORG 85
N.º de identificação 304120
- Max. omgevingstemperatuur: 90 °C
Detalhes técnicos
| Aantal vingers | 6.0 |
|---|---|
| Drievoudige klemmen A: werkingsprincipe | dubbelwerkend |
| Drievoudige klemmen A: slag per vinger [mm] | 21.0 |
| Drievoudige klemmen A: sluitkracht [N] | 45.0 |
| Drievoudige klemmen A: openingskracht [N] | 55.0 |
| Drievoudige klemmen A: slag voor inschuiven [mm] | 5.0 |
| Drievoudige klemmen A: kracht voor inschuiven [N] | 20.0 |
| 3-voudige klauwen A: cilindervolume per dubbele slag [cm³] | 11.0 |
| 3-voudige klauwen A: cilindervolume per dubbele slag [cm³] | 6.0 |
| Drievoudige klemmen B: werkingsprincipe | in één richting werkend |
| Drievoudige klemmen B: slag per vinger [mm] | 15.0 |
| Drievoudige klemmen B: openingskracht [N] | 125.0 |
| Drievoudige klemmen B: vloeistofverbruik per openingsslag [cm³] | 9.0 |
| Sluitingstijd [s] | 0.1 |
| Openingstijd [s] | 0.12 |
| Gewicht [kg] | 1.35 |
| Nominale werkdruk [bar] | 6.0 |
| Min. werkdruk [bar] | 4.0 |
| Max. werkdruk [bar] | 8.0 |
| Max. toegelaten vingerlengte [mm] | 80.0 |
| IP-beschermklasse | 40 |
| Min. omgevingstemperatuur [°C] | 5.0 |
| Max. omgevingstemperatuur [°C] | 90.0 |
| Rondloopnauwkeurigheid [mm] | 0.02 |
| Diameter D [mm] | 85.0 |
| Hoogte Z [mm] | 98.0 |
| Moment Mx max. [Nm] | 10.0 |
| Moment My max. [Nm] | 8.0 |
| Moment Mz max. [Nm] | 6.0 |
| max. axiale kracht Fz max. [N] | 40.0 |
Drievoudige klemmen A en B kunnen worden afgesteld aan de hand van hun openingsslag - de gesloten positie blijft ongewijzigd.
Neem contact op met SCHUNK voor volledige compatibiliteit met uw installatie.
Dimensions and maximum loads
Drievoudige klemmen A buiten grijpkracht
Triple jaws A inside gripping force
Triple jaws B inside gripping force

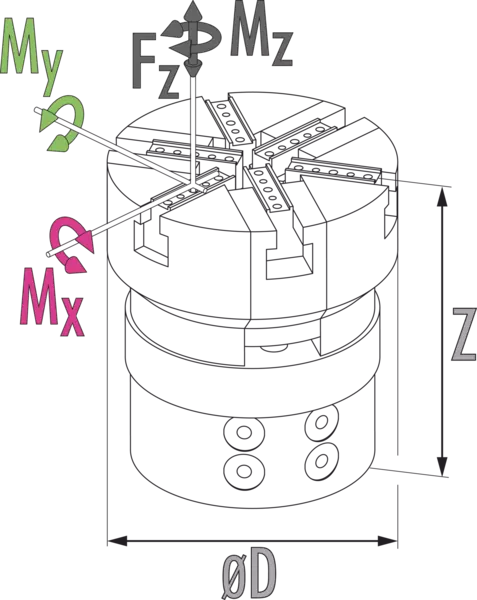

Dimensions and maximum loads
The indicated moments and forces are statical values, apply for each base jaw and may appear simultaneously. Loads may additionally occur to the moment produced by the gripping force itself.

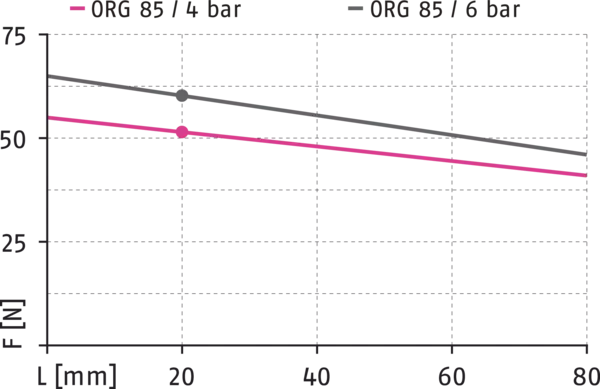

Drievoudige klemmen A buiten grijpkracht
- Eixo X:
- Vingerlengte
- Eixo Y:
- Grijpkracht

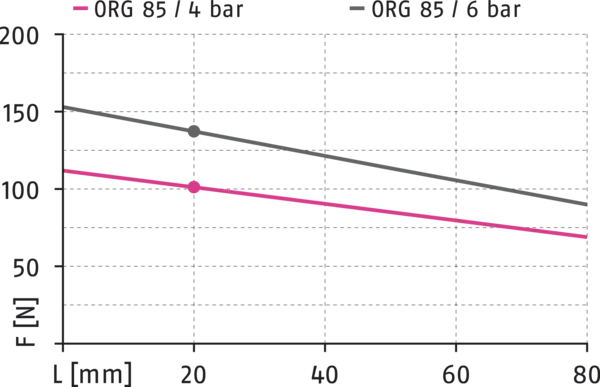

Triple jaws A inside gripping force
- Eixo X:
- Finger length
- Eixo Y:
- Gripping force

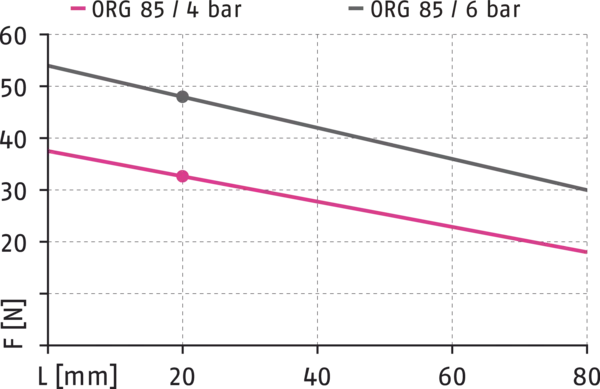

Triple jaws B inside gripping force
- Eixo X:
- Finger length
- Eixo Y:
- Gripping force
General notes about the series
Gripping force
is the arithmetic sum of the individual force applied to each jaw at distance P (see illustration).
Finger length
is measured from the reference surface as the distance P in direction to the main axis. The maximum permissible finger length applies until the nominal operating pressure is achieved. With higher pressures, the finger length must be reduced proportionally to the nominal operating pressure.
Repeat accuracy
is defined as a distribution of the end Position for 100 consecutive strokes.
Workpiece weight
is calculated for force-fit gripping with a coefficient of static friction of 0.1 and a safety factor of 2 against workpiece slippage at acceleration due to gravity g. For form-fit or capture gripping, there are significantly higher permissible workpiece weights.
Closing and opening times
are movement times of the base jaws only, without application-specific gripper fingers. Valve switching times, hose fill times, or PLC reaction times are not included, and are to be considered when cycle times are calculated.
Operating principle
Two independent triple-finger combinations deform the O-ring in order to then install it.
Housing material
Aluminum
Base jaw material
Steel
Actuation
pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4].
Warranty
24 months
Service life characteristics
on request
Scope of delivery
Centering sleeves, safety information (product-specific instructions available online)
