PGN-plus 125-2-AS Illustration similar

PGN-plus 125-2-AS

Universal gripper

ID 371453

Universal gripper PGN-plus, Size: 125, pneumatic, with gripping force maintenance: AS

  • Stroke per jaw: 6 mm
  • Closing force: 3040 N
  • Max. ambient temperature: 90 °C
Stroke per jaw [mm] 6
Closing force [N] 3040
Closing force (with finger lengths of 0 mm) [N] 3540
Min. spring force [N] 800
Weight [kg] 1.85
Recommended workpiece weight [kg] 11.2
Fluid consumption double stroke [cm³] 119
Min. operating pressure [bar] 4
Max. operating pressure [bar] 6.5
Nominal operating pressure [bar] 6
Min. air purge pressure [bar] 0.5
Max. air purge pressure [bar] 1
Closing time [s] 0.08
Opening time [s] 0.12
Closing/opening time with spring [s] 0.3
Max. permissible finger length [mm] 160
Max. permissible weight per finger [kg] 2.1
IP protection class 40
Min. ambient temperature [°C] 5
Max. ambient temperature [°C] 90
Repeat accuracy [mm] 0.01
Cleanroom class ISO 14644-1 5
Length X [mm] 151
Width Y [mm] 60
Height Z [mm] 93
Moment Mx max. [Nm] 120
Moment My max. [Nm] 145
Moment Mz max. [Nm] 100
Max. axial force Fz max. [N] 2800
It may take a few 100 gripping cycles until the full gripping force (as indicated in the data table) will be available.

General notes about the series

Gripping force
is the arithmetic sum of the individual force applied to each jaw at distance P (see illustration).

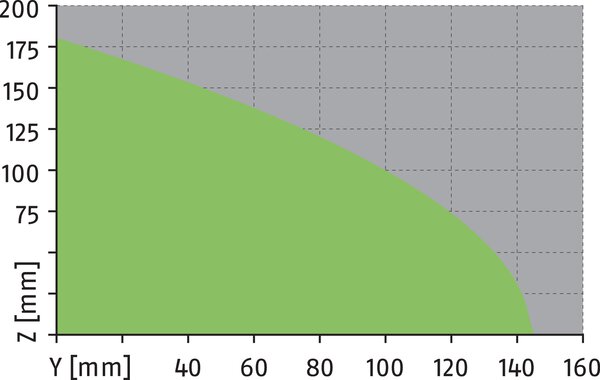

Finger length
is measured from the reference surface as the distance P in direction to the main axis. The maximum permissible finger length applies until the nominal operating pressure is achieved. With higher pressures, the finger length must be reduced proportionally to the nominal operating pressure.

Repeat accuracy
is defined as a distribution of the end Position for 100 consecutive strokes.

Workpiece weight
is calculated for force-fit gripping with a coefficient of static friction of 0.1 and a safety factor of 2 against workpiece slippage at acceleration due to gravity g. For form-fit or capture gripping, there are significantly higher permissible workpiece weights.

Closing and opening times
are purely the times that the base jaws or fingers are in motion. Valve switching times, hose fill times, or PLC reaction times are not included, and are to be considered when cycle times are calculated.

Cleanroom class ISO 14644-1:1999

Operating principle
Wedge gear with surface power transmission

Housing material

Base jaw material

pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4].

36 months

Service life characteristics
on request

Scope of delivery
Brackets for proximity switches, centering sleeves, O-rings for direct connection, assembly instructions (operating manual with declaration of incorporation is available online)

Gripping force maintenance device
possible by using the version with mechanical gripping force maintenance or pressure maintenance valve SDV-P
