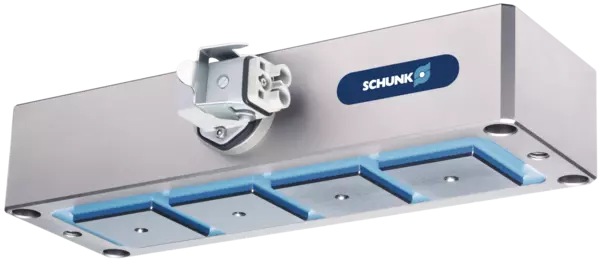

EGM-B-Q-50-1x4 Illustration similar

EGM-B-Q-50-1x4

ID 306372

Magnetic gripper EGM, electrical

  • Magnet type: Bipol
  • Pole form: square
  • Pole width: 50 mm
  • Number of poles, pole arrangement: 1 x 4
  • Communication interface: digital I/O
  • Power supply: 400 V AC
  • Max. total current: 32 A
  • Number of poles: 4
  • Magnet area: 100 cm²
  • Magnetic circuit: 9.5 A
  • Max. ambient temperature: 50 °C
Weight [kg] 13
Number of poles 4
Magnet area [cm²] 100
Minimum workpiece thickness [mm] 14
Payload for horizontal magnet surface [kg] 175
Payload for vertical magnet surface [kg] 70
Max. activations/minute [1/min] 8
Module temperature increasement in case of 5 activations/minute [°C] 30
Module temperature increasement in case of 15 activations/minute [°C] 68
IP protection class 52
Current consumption upon activation/deactivation [A] 9.5
Length X [mm] 290
Width Y [mm] 95
Height Z [mm] 61
Magnet controller type ECG 02
Nominal voltage [V AC] 400
Max. current [A] 32
Max. number of modules per controller 7

Operating principle
Magnetization of permanent magnets

Housing material
Steel

Base jaw material
Steel

Actuation
Electrical current pulse for activation and deactivation of the system

Warranty
24 months

Service life characteristics
on request

Scope of delivery
Accessory kit with centering sleeves
