Supporting jaws
Supporting jaws

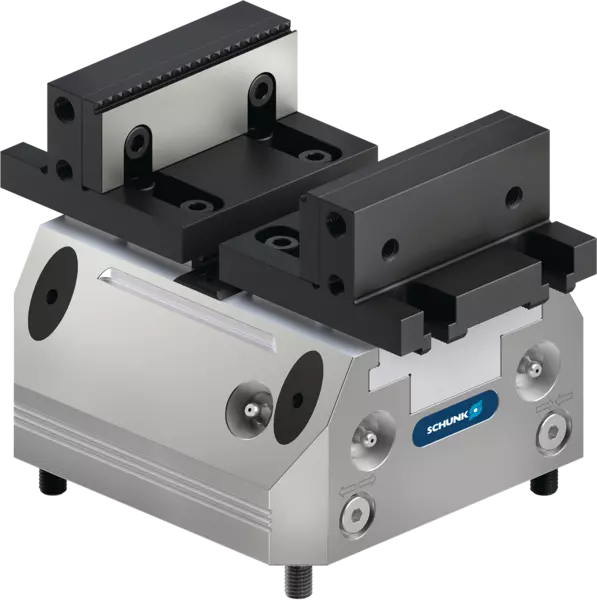

Reversible supporting jaws with fine serration for mounting standard top jaws from SCHUNK.
Funktion
Funktion
Anwendungsbeispiele
Vue en coupe
TBA-D supporting jaw system
Vue en coupe
- 1
-
Metric fine serration
Assure le réglage fin de la plage de serrage - 2
-
Long slot bore
For individual adjustment to the clamping range combined with fine serration - 3
-
Standard jaw interface
For the use of standard jaws from SCHUNK - 4
-
Mounting thread
For workpiece stops
TBA-D supporting jaw system
- 1
-
Trägerbacke TBA-D
Dient zur Aufnahme der Aufsatzbacken aus dem großen KONTEC-Baukasten - 2
-
Spring leaf pull-down jaw
Sorgt für einen aktiven Niederzug mit leichtem Spannabdruck am Werkstück für genauere Bearbeitungsergebnisse - 3
-
Stepped jaw
With different grip levels and grip versions for powerful clamping of workpieces - 4
-
Ground jaw
For precise clamping of workpieces - 5
-
Hewed jaw
For increased friction between jaw and workpiece with minimal clamping marks - 6
-
Ground prism jaw
For precise clamping of round workpieces.
Application example
