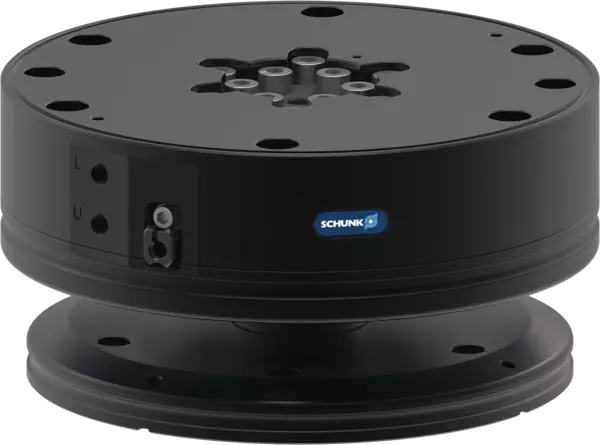

AGE-W
Angular Compensation Unit
This product has been discontinued and is no longer available.
Phased out date: Sep 1, 2021
Compensation unit for use in the assembly, or loading and unloading and bin picking. Due to the rotational and angular compensation of the AGE-W, the robot end effector is adjusted to the position of the component.
Description
Advantages – Your benefits
- Deflection both while in rotation and at an angle
compensate for inaccuracies in the position of the workpiece and saves time, cost and effort by simplifying robot programming - Locking components made from hardened steel
provide a robust construction and guarantee long life - Centric locking via tried-and-tested ball system
allows for a robust and precise locking. The unit can be made rigid for following processes - ISO mounting pattern
equipped with ISO standard both robot-side and tool-side A direct screw connection to conventional robot types is possible without an additional adapter plate - Monitoring of the locked condition
via an inductive proximity sensor increases the process reliability - Optional protective boot
for high resistance to external operating fluids such as coolant
Options and special information
- Optional protective boot
A protective cover is available for the compensation unit. The protective cover can be ordered and retrofitted.
