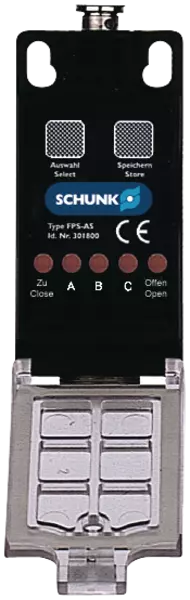

FPS-F5
Flexible position sensor
ID 301805
Evaluation electronics FPS, Size: F5
- Number of switching points: 5
- Nominal voltage: 24 V
- Length: 62 mm
Technical details
| Number of switching points | 5 |
|---|---|
| Nominal voltage [V] | 24 |
| Min. voltage (DC) [V] | 10 |
| Max. voltage [V] | 30 |
| Nominal current (DC) [A] | 0.01 |
| Weight [kg] | 0.06 |
| Min. ambient temperature [°C] | -25 |
| Max. ambient temperature [°C] | 70 |
| IP protection class | 65 |
In combination with an FPS or MMS 22-A-05-V-M8 sensor, the FPS electronics are suitable for monitoring up to five positions/areas.
