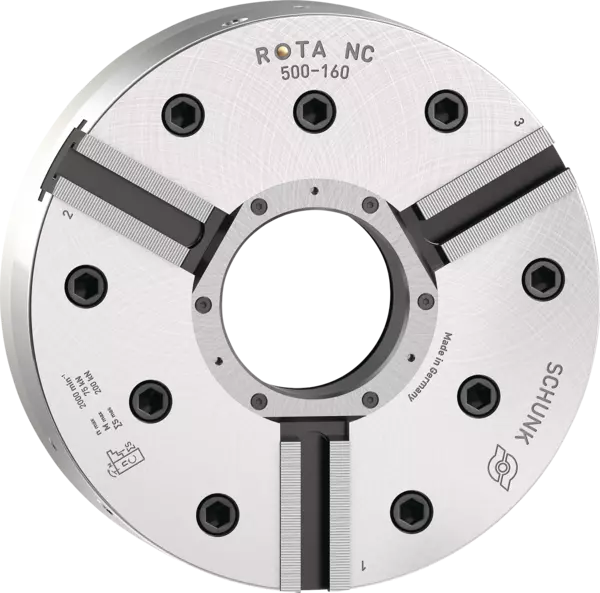

ROTA NC 500-160 Z380-SV90°

3-jaw power chuck with through-hole
Ready for shipment from 11 working days

Description

Standard power lathe chucks with through-hole

Product features:
  • 3-jaw wedge-hook chuck
  • Through-hole: 160 mm
  • Spindle holder: ISO 702-4 Nr. 15 (Z380)
  • Jaw interface: 3/32" x 90° Nut 25,5H7
Technical data:
  • Stroke per jaw: 8 mm
  • Piston stroke: 30 mm
  • Max. clamping force: 200 kN
  • Max. actuating force: 75 kN
  • Max. RPM: 2000 1/min
  • Weight: 180 kg

Digital services ROTA NC 500-160 Z380-SV90°

Matching with the product ROTA NC 500-160 Z380-SV90°, we offer various digital services – the perfect complement for maximum efficiency, planning and process reliability.

Technical data ROTA NC 500-160 Z380-SV90°

Spindle type ISO 702-4
Spindle size Nr. 15 (Z380)
Serration 3/32" x 90°
Max. RPM [1/min] 2000
Max. clamping force [kN] 200
Max. actuating force [kN] 75
Stroke/jaw [mm] 8
Piston stroke (H) [mm] 30
Moment of inertia [kgm²] 6.1
Weight [kg] 180

Definition of technical designations

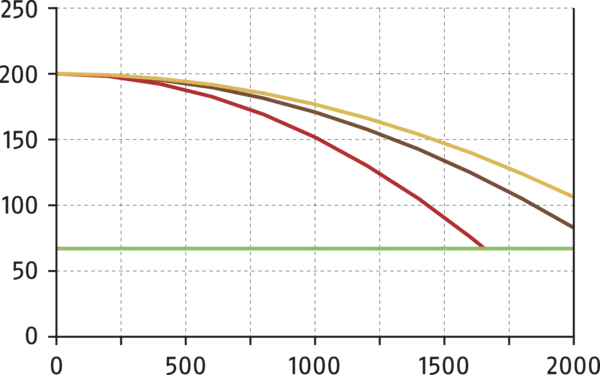

Definition clamping force
The clamping force is the arithmetic sum of the individual forces occuring at the chuck jaws, distance “H“ at maximum pressure and maximum torque. The specifications exclusively refer to the grease used by SCHUNK.
Scope of delivery
Chuck, T-nuts with screws, chuck mounting bolts, mounting wrench for turnable threaded ring, eye bolt, and operating manual

Product reviews ROTA NC 500-160 Z380-SV90°

Please sign in to create reviews.

    Accessory ROTA NC 500-160 Z380-SV90°

    The following components make the product ROTA NC 500-160 Z380-SV90° even more productive – the right addition for maximum functionality, flexibility, reliability and process safety.

    Downloads

    Catalogue Chapter: ROTA NC plus 2

    Catalogue Pages: ROTA NC 500-160

    ROTA NC Operating Manual

    Complete Catalogue Lathe Chucks 2022
