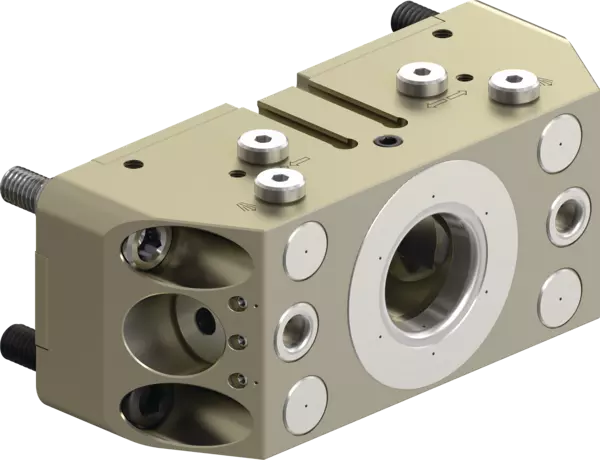

NSR mini 100
Robot couplings
ID 471960
Robot module of the quick-change pallet system in standard version
- Spring-loaded system - Pneumatically opening
- Turbo function
- Integrated cleaning function
- Dimensions: 100 x 39,5 x 38 mm
- Pull-down force: 1 kN
- Pull-down force with turbo: 4 kN
- Max. moment Mx: 75 Nm
- Max. moment Mz: 200 Nm
- Repeat accuracy: < 0.02 mm
- Unlocking pressure: 6 bar
- Weight: 0.4 kg
Technical details
| Length [mm] | 100.0 |
|---|---|
| Width [mm] | 39.5 |
| Pull-down force [kN] | 1.0 |
| Pull-down force with turbo [kN] | 4.0 |
| Unlocking pressure [bar] | 6.0 |
| Repeat accuracy [mm] | < 0.02 |
| Moment Mx max. [Nm] | 75.0 |
| Moment Mz max. [Nm] | 200.0 |
| Weight [kg] | 0.4 |
Scope of delivery
Robot module, fastening screws, fitting screws, O-rings, operating manual; without proximity switches
