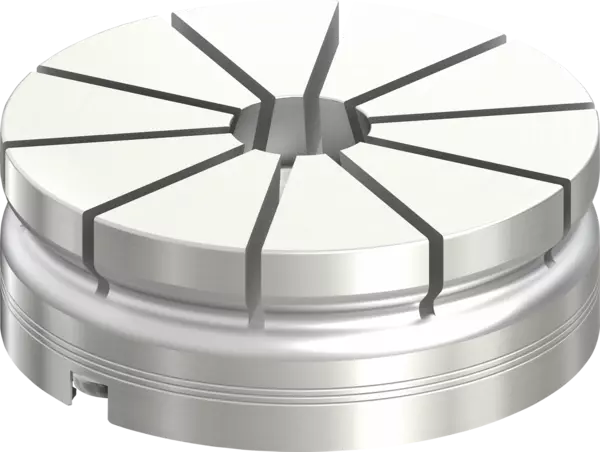

SPM plus 138
Fixture Membrane
ID 471158
Fixture membrane standard
- Top side for customer's finishing
- Bottom one-way clamping pin SPC 40 with indexing pin IXB V1
- Dimensions: Ø149 x 55 mm
- Clamping diameter: 36 - 125 mm
- Repeat accuracy: < 0.01 mm
- Clamping depth: 3 - 20 mm
- Clamping stroke: 0.5 mm
- Max. clamping force: 50 kN
- Material: Aluminum
- Weight: 1.5 kg
Technical details
| Diameter [mm] | 149.0 |
|---|---|
| Max. clamping force [kN] | 50.0 |
| Min. workpiece diameter [mm] | 36.0 |
| Max. workpiece diameter [mm] | 125.0 |
| Repeat accuracy [mm] | < 0.01 |
| Clamping stroke [mm] | 0.5 |
| Material | Aluminum |
| Weight [kg] | 1.5 |
Scope of delivery
Fixture membrane, adjusting ring, clamping pins, indexing pins, operating manual
