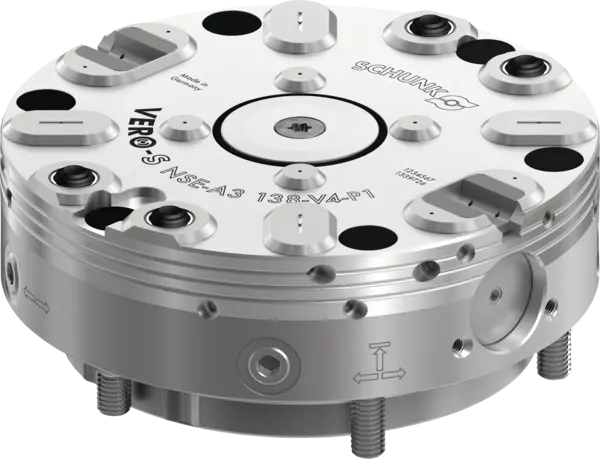

NSE-A3 138-V4-P1
Automation modules
ID 1339726
Clamping module standard
- Spring-loaded system - Pneumatically opening
- Turbo function
- Cone seal
- Anti-rotation protection
- Integrated cleaning function
- 4-way pneumatic media transfer unit
- Dynamic pressure monitoring of the clamping slide positions
- Dimensions: Ø138 x Ø110 x 55,7 mm
- Pull-down force: 8 kN
- Pull-down force with turbo: 28 kN
- Repeat accuracy: < 0.005 mm
- Unlocking pressure: 6 bar
- Weight: 4.2 kg
Technical details
| 直径 [mm] | 138.0 |
|---|---|
| 下拉力 [kN] | 8.0 |
| 下拉力，带增压 [kN] | 28.0 |
| 解锁压力 [bar] | 6.0 |
| 重复精度 [mm] | < 0.005 |
| 重量 [kg] | 4.2 |
标配范围
夹持模块、紧固螺钉、装配螺钉、O 型圈 、罩盖、操作手册；无定位销、无分度销
