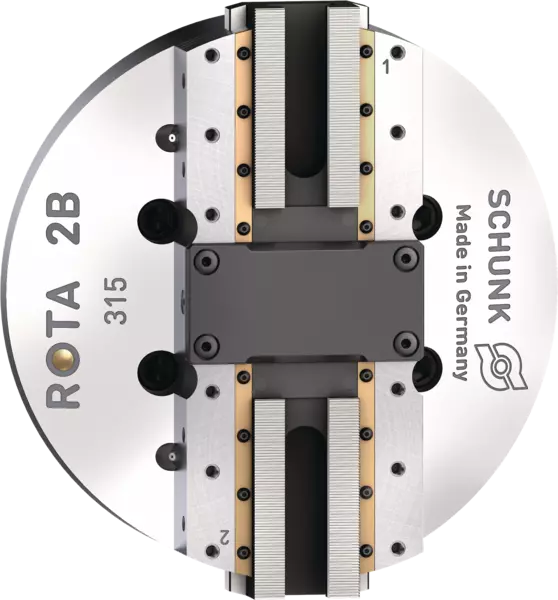

ROTA 2B 315 Z220-SV90°
Power lathe chucks without through-hole
ID 813070
Standard power lathe chucks without through-hole
Product features:
Product features:
- 2-jaw wedge-hook chuck
- Spindle holder: ISO 702-4 Nr. 8 (Z220)
- Jaw interface: 1/16" x 90° Nut 25,5H7
- Stroke per jaw: 18 mm
- Piston stroke: 32 mm
- Max. clamping force: 85 kN
- Max. actuating force: 68 kN
- Max. rotational speed: 2200 1/min
- Weight: 36 kg
Technical details
| Typ vřetene | ISO 702-4 |
|---|---|
| Velikost vřetene | Nr. 8 (Z220) |
| Ozubení | 1/16" x 90° |
| Max. rychlost otáčení [1/min] | 2200.0 |
| Max. upínací síla [kN] | 85.0 |
| Max. aktivační síla [kN] | 68.0 |
| Zdvih/čelist [mm] | 18.0 |
| Zdvih pístu (H) [mm] | 32.0 |
| Moment setrvačnosti [kgm²] | 0.38 |
| Vlastní hmotnost [kg] | 36.0 |

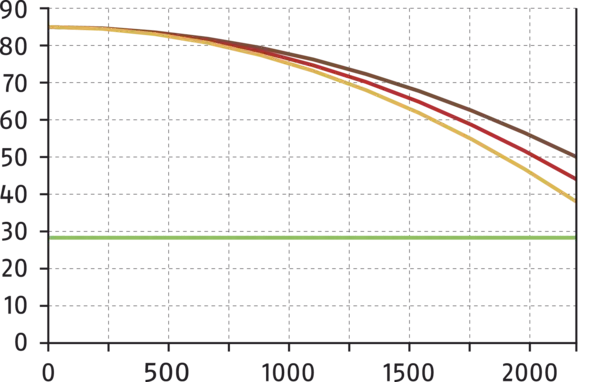

Diagram upínací síly v otáčkách za minutu
Diagram upínací síly v otáčkách za minutu
- X-axis:
- n [min-1]
- Y-axis:
- Fsp [kN]
- brown
-
2 SWK 315, 5.0 kg
- red
-
2 SWK 315, 7.0 kg
- yellow
-
2 SWK 315, 9.0 kg
- green
-
Vereiste minimale klemkracht Fspmin 33%
Levering
Klauwplaat, T-moeren of montagebouten voor bovenklauwen, klauwplaatmontagebouten, oogschroef en bedieningshandleiding
