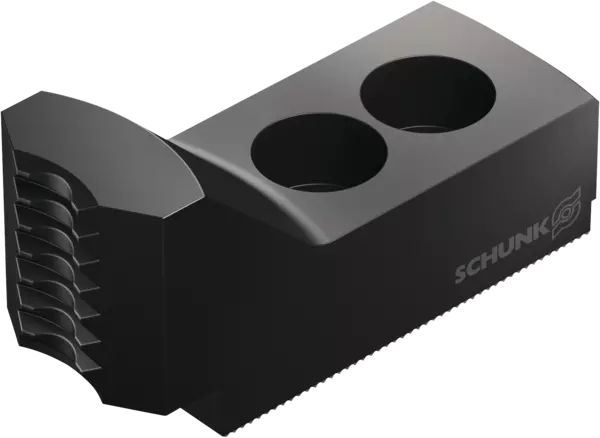

SZAJ-ST 25-3
Hard Claw Jaws for Bar Clamping
ID 175508
SZAJ-ST 25-3, Hard Claw Jaws for Bar Clamping
Product features:
Product features:
- Serration: 1.5 mm x 60°
- Groove width: 16 mm
- Delivery unit: 1 set = 3 pieces
- Would you like to know the exact clamping range on your lathe chuck? Click "Tools" and use our chuck jaw quickfinder.
Technical details
| Produktgruppe | Harte Krallenbacken für Stangenspannung |
|---|---|
| Verzahnung | 1.5 mm x 60° |
| Nutbreite N [mm] | 16.0 |
| Breite B [mm] | 40.0 |
| Höhe H [mm] | 50.0 |
| Länge L [mm] | 97.8 |
| Einspanntiefe T [mm] | 44.0 |
| Lochabstand b [mm] | 30.0 |
| Schrauben | M12 |
| Werkstoff | Stahl 16MnCr5, gehärtet |
| m/Satz [kg] | 2.5 |
