RGG 20 Illustration similar

RGG 20

Cleaning Unit with Shank Interface

ID 308590

Cleaning Unit with Shank Interface RGG, Size: 20

  • Max. ambient temperature: 90 °C
Do you have a question?
Download CAD file
Technical details
Weight [kg] 0.1
Min. ambient temperature [°C] -10
Max. ambient temperature [°C] 90
Max. permissible RPM [1/min] 100
Max. operating pressure [bar] 80
Diameter D [mm] 37
Height Z [mm] 78
Please note that applications under extreme conditions (e.g. coolant, casting or abrasive dust) will reduce the service life of this product considerably.
Please note that the product is not suitable for heat shrinking toolholders.

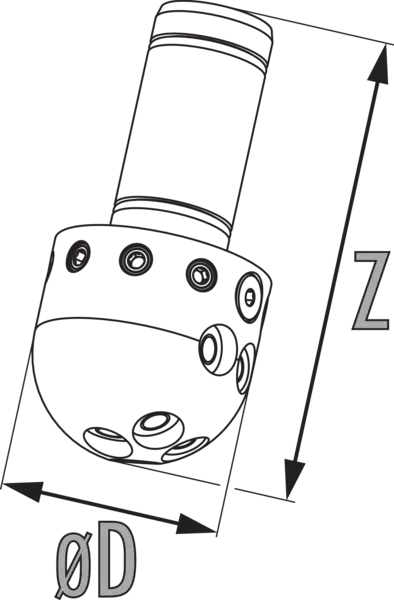

Dimensions

Content available soon
Content available soon

Dimensions

Spindle interface material
Aluminum alloy

Actuation
hydraulically with machine coolant (filtered, max. particle size of 30 µm) or pneumatically with filtered compressed air in accordance with ISO 8573-1:2010 [7:4:4].

Warranty
24 months
