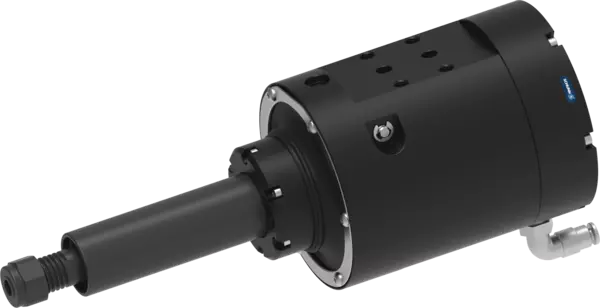

RCV-250
去毛刺主轴
IDnr. 1460804
Dit product is uit productie genomen en niet langer verkrijgbaar.
Meer informatie en contact opnemen hier.
去毛刺主轴 RCV, 尺寸: 250, 气动
- 最大补偿 X: ± 7.1 mm
- 最大补偿 Y: ± 7.1 mm
Technische gegevens
| 功率 [W] | 250.0 |
|---|---|
| 怠速 [1/min] | 40000.0 |
| 额定速度 [1/min] | 20000.0 |
| 最大补偿角 X [°] | ± 3 |
| 最大补偿 X [mm] | ± 7.1 |
| 最大补偿角 Y [°] | ± 3 |
| 最大补偿 Y [mm] | ± 7.1 |
| 轴向固定 | 配套 |
| 建议补偿路径 [mm] | ± 3.5 |
| 最小径向补偿力 [N] | 9.0 |
| 最大径向补偿力 [N] | 54.0 |
| 最小补偿压力 [bar] | 1.0 |
| 最大补偿压力 [bar] | 4.1 |
| 工作压力 [bar] | 6.2 |
| 最大耗气量 [l/s] | 14.2 |
| 刀具夹持器 | 筒夹 ER-11 6 mm 和 8 mm |
| 主轴空气接口 | 10 mm |
| 补偿空气接口 | 4 mm |
| 重量 [kg] | 1.71 |
| 最低环境温度 [°C] | 5.0 |
| 最高环境温度 [°C] | 35.0 |
| 直径 D [mm] | 82.6 |
| 高度 Z [mm] | 228.8 |
| 力 Fx max. [N] | 54.0 |
| 力 Fy max. [N] | 54.0 |

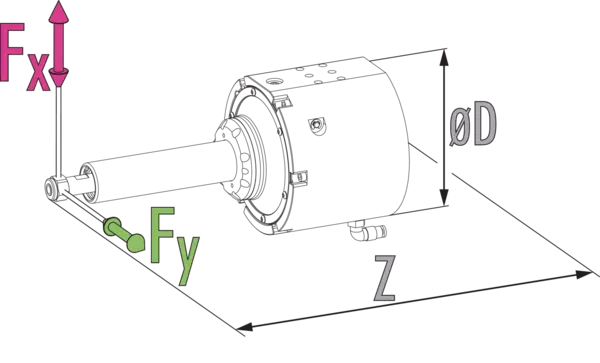

Dimensions and maximum loads
Dimensions and maximum loads
The indicated forces show the maximum payload.
General notes about the series
Ambient conditions
Please note that the unit is notsuitable for use in an area where coolants or cutting fluids are present.
Mounting
on the robot arm or as a stationary unit
Actuation
pneumatic, via filtered (<5 µm, dry) and oiled compressed air (1-2 drops per minute)
Warranty
24 months
