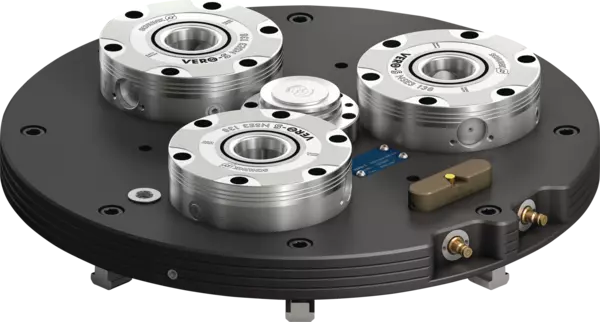

NSL3 turn 450-3-Z
Clamping Stations
ID 1323583
Clamping station standard
Product features:
Product features:
- 3-way NSE3 138
- Spring-loaded system - Pneumatically opening
- For turning applications on mill/turn centers
- Turbo function
- Clamping station with short taper A4
- Dimensions: Ø 450 x 75 mm
- Pull-down force with turbo: 84 kN
- Actuation pressure: 6 bar
- Max. RPM: 2000 1/min
- Run-out accuracy: < 0.01 mm
- Weight: 51 kg
Technical details
Diameter [mm] | 450 |
---|---|
Pull-down force with turbo [kN] | 84 |
Unlocking pressure [bar] | 6 |
Run-out accuracy [mm] | < 0.01 |
Max. RPM [1/min] | 2000 |
Weight [kg] | 51 |
Scope of delivery
Clamping station, mounting screws, centering pins, adjustment pins, T-nuts, locking coupling, eye bolts, operating manual; without clamping pins
