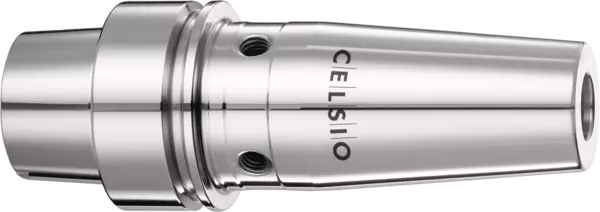

CELSIO HSK-E 32 Ø4x60
Mandrin à frettage thermique
ID 210141
CELSIO HSK-E 32 Ø4x60, Porte-outils
- Mandrin à frettage thermique
- Gammes: CELSIO
- Interface de porte-outils: HSK-E 32
- Diamètre de serrage: 4 mm
- Longueur de projection: 60 mm
- Concentricité: ≤ 0.003 mm mesuré dans l'alésage de serrage (selon DIN 69882-8)
- Qualité d'équilibrage: G2.5 à 25 000 tr/min ou Umax < 1 gmm
- Couple de rotation min.: 6 Nm
Détails techniques
| Technologie | Mandrin à frettage thermique |
|---|---|
| Gammes | CELSIO |
| Interface de porte-outils | HSK-E 32 |
| Porte-outil standard | DIN 69893-5 |
| Diamètre de serrage D1 | 4 mm |
| D2 [mm] | 17.0 |
| D6 [mm] | 12.0 |
| Porte à faux L1 [mm]/[pouce] | 60 mm / 2.4" |
| L4 [mm] | 40.0 |
| Couple de rotation min. [Nm] | 6.0 |
| Poids [kg] | 0.1 |
| Étanche au liquide d'arrosage | Oui |
| Longueur standard | Oui |
Run-out accuracy
≤ 0.003 mm measured in the clamping bore (according to DIN 69882-8)
Balancing grade
G2.5 at 25,000 RPM or Umax < 1 gmm
Tool shank quality
h6
Data carriers
Bore for data carrier as an option
Toolholder changes
For automatic toolholder changes
Length-setting screw
With adjustment screw for axial length adjustment (except Ø 3, Ø 4 and Ø 5)
Balancing screw
With thread for balancing screws (except Ø 3, Ø 4 and Ø 5)
Individual
Additional sizes and customized designs are available upon request
