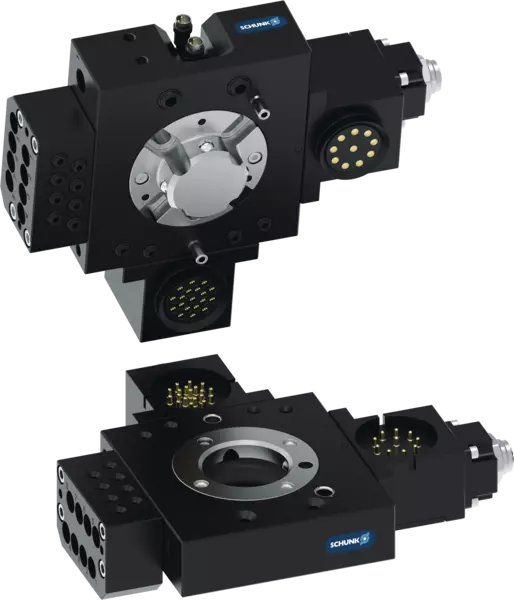

SWK-029-0-0-0-SM
Ident.-Nr. 1499175
- Kolbenhubabfrage: integriert
- Max. Gesamtzuladung: 35 kg
Technische Details
| Empfohlenes Handlinggewicht [kg] | 35.0 |
|---|---|
| Kolbenhubabfrage | integriert |
| Moment Mx max. [Nm] | 169.5 |
| Moment My max. [Nm] | 169.5 |
| Moment Mz max. [Nm] | 230.0 |
| Verriegelungskraft [N] | 2850.0 |
| Wiederholgenauigkeit [mm] | 0.0152 |
| Eigenmasse [kg] | 0.99 |
| Max. Abstand beim Verriegeln [mm] | 1.5 |
| Luftanschlussgewinde Pneumatikdurchführung | 2x G1/8" |
| Luftanschlussgewinde Pneumatikdurchführung | 4x M5 |
| Hauptanschlussgewinde Ver-/Entriegeln | M5 |
| Max. zul. XY-Achsversatz [mm] | 0.9 |
| Max. zul. Winkelversatz [°] | 0.8 |
| Anschluss roboterseitig | ISO 9409-1-50-4-M6 ** |
| Min. Umgebungstemperatur [°C] | 5.0 |
| Max. Umgebungstemperatur [°C] | 60.0 |
| Min. Betriebsdruck [bar] | 4.5 |
| Max. Betriebsdruck [bar] | 6.9 |
| Länge X [mm] | 100.0 |
| Breite Y [mm] | 94.5 |
| Höhe Z [mm] | 35.4 |
| Anschraubbild | 3 x J |
**Roboterseitiger Direktanschluss für ISO 9409-40-4-M6 auf Anfrage erhältlich.
Dimensionen und max. Belastungen
Dimensionen und max. Belastungen
Es handelt sich hierbei um die max. Summe aller Belastungen, die auf das Wechselsystem wirken dürfen, um eine fehlerfreie Funktion zu gewährleisten.
General notes about the series
Harsh environmental conditions
Please note that use under harsh environmental conditions (e.g. in the coolant area, cast and grinding dust) can considerably reduce the service life of the units, and we will not take over any warranty. However, in many cases we can find a solution. Please contact us for assistance.
Handling weight
is the weight of the total load attached to the flange. When designing, the permissible forces and moments have to be paid attention to. Please note that exceeding the recommended handling weight will shorten the lifespan.
Actuation
pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4].
Operating principle
locking balls actuated by pistons for locking
Media transmission
variable via attachment feed-through modules, depending on the unit size
Housing
The housing consists of high-strength, hard-coated aluminum alloy. The functional components are made of hardened steel.
Warranty
24 months
Service life characteristics
on request
