TCU-P-160-3-MV
N.º de identificação 324846
- Poids de pièce recommandé: 30 kg
- Force Fz max.: 400 N
- Force Fd max.: 4300 N
Detalhes técnicos
| Bloqueo | con mecanismo de bloqueo |
|---|---|
| Dureza del elastómero [Shore] | 68.0 |
| Desviación X [°] | ± 1 |
| Desviación Y [°] | ± 2 |
| Desviación Z [°] | ± 1.5 |
| Precisión de repetición [mm] | 0.02 |
| Peso [kg] | 0.7 |
| Presión de trabajo mín. [bar] | 4.0 |
| Presión de trabajo máx. [bar] | 8.0 |
| Temperatura ambiente mín. [°C] | -10.0 |
| Temperatura ambiente máx. [°C] | 90.0 |
| Momento de bloqueo Mx [Nm] | 30.0 |
| Momento de bloqueo My [Nm] | 18.0 |
| Momento de bloqueo Mz [Nm] | 50.0 |
| Fuerza de bloqueo Fz [N] | 400.0 |
| Fuerza máx. Fd [N] | 4300.0 |
| Conexión directa* | PGN-plus 160 |
| Longitud X [mm] | 72.0 |
| Anchura Y [mm] | 125.0 |
| Momento Mx máx. [Nm] | 160.0 |
| Momento My máx. [Nm] | 70.0 |
| Momento Mz máx. [Nm] | 120.0 |
Dimensions and maximum loads
Deflection
Diagrama de carga
Máxima deflexión
Dimensions and maximum loads
The forces and torques are maximum values when unlocked and may occur simultaneously. When locked, only the loads caused by the weight and acceleration are permissible.
Deflection
Deflection (fa) dependent upon the length (L) to the center of mass

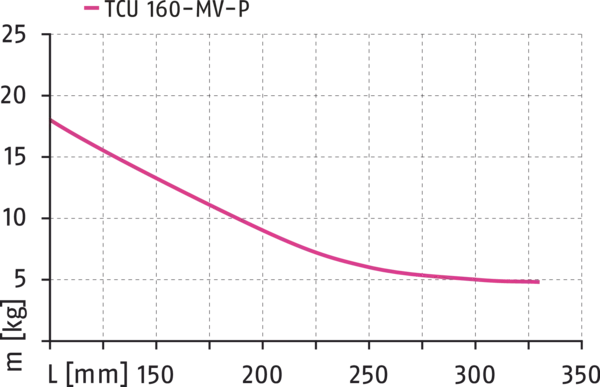

Diagrama de carga
- Eixo X:
- Distancia máx.
- Eixo Y:
- Peso de manipulación máx.
Máxima deflexión
Deflection (fa) dependent upon the length (L) to the center of mass
General notes about the series
Harsh environmental conditions
Please note that use under harsh environmental conditions (e.g. in the coolant area, cast and grinding dust) can considerably reduce the service life of the units, and we will not take over any warranty. However, in many cases we can find a solution. Please contact us for assistance.
Handling weight
is the weight of the total load attached to the flange. When designing, the permissible forces and moments have to be paid attention to. Please note that exceeding the recommended handling weight will shorten the lifespan.
Monitoring
by magnetic switch
Actuation
pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4].
Material
Elastomer material
Housing
Aluminum alloy
Scope of delivery
Robot-side mounting screws
Warranty
24 months
