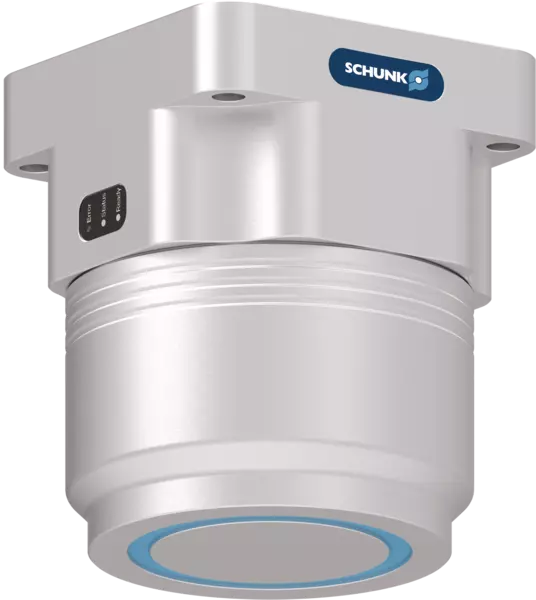

EMH-RP 114-B
ID 1351499
- 電源: 24 V
- マグネットエリア: 81.97 cm²
- マグネット回路: 7.1 A
- 最高周囲温度: 50 °C
技术细节
| 保持力 [N] | 10550.0 |
|---|---|
| マグネットエリア [cm²] | 81.97 |
| 水平磁石面に対する有効荷重 [kg] | 175.0 |
| 垂直磁石面に対する有効荷重 [kg] | 70.0 |
| 毎分 5 回作動の場合のモジュール温度上昇 [°C] | 20.0 |
| 毎分 15 回作動の場合のモジュール温度上昇 [°C] | 45.0 |
| 作動時間 [ms] | 900.0 |
| 最低周囲温度 [°C] | 5.0 |
| 最高周囲温度 [°C] | 50.0 |
| 重量 [kg] | 8.0 |
| IP 保護等級 | 52 |
| 公称電圧 [V] | 24.0 |
| 電圧タイプ | DC |
| 最大電流出力 [A] | 7.1 |
| 定格電流ロジック [A] | 0.15 |
| 電子コントローラー | 内蔵 |
| 長さ X [mm] | 128.0 |
| 幅 Y [mm] | 128.0 |
| 高さ Z [mm] | 157.0 |
寸法と最大荷重
ワーク厚さ
エアギャップ
温度上昇
寸法と最大荷重
ワーク厚さ
- X 轴:
- ワーク厚さ
- Y 轴:

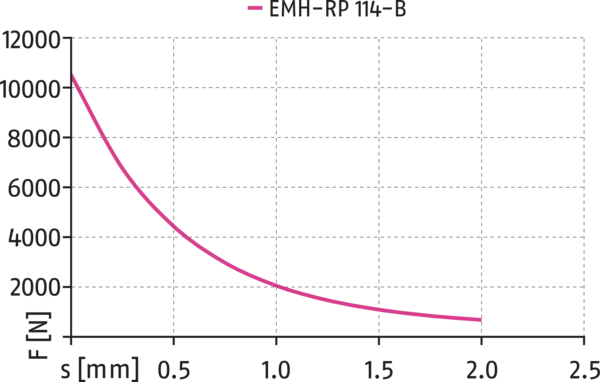

- 保持力
エアギャップ
- X 轴:
- エアギャップ
- Y 轴:
- 保持力
温度上昇
- X 轴:
- アクティベーション
- Y 轴:
- 温度上昇
General notes about the series
Layout or control calculation
Verifying the sizing of the selected unit is necessary, since otherwise overloading can result. Please contact us for assistance.
Activation time
The activation time is the time required to reverse the polarity of the permanent magnets.
Ambient conditions
The modules are primarily designed for the use in clean to slightly contaminated environments. Please note that the life time of the modules can shorten if they are used in harsh ambient conditions, and that SCHUNK cannot assume liability in such cases.
Operating principle
Magnetization of permanent magnets
Housing material
Aluminum/steel
Base jaw material
Steel
Actuation
Electrical current pulse for activation and deactivation of the system
Warranty
24 months
Service life characteristics
on request
Scope of delivery
Assembly and Operating Manual with Declaration of Incorporation, centering sleeves
