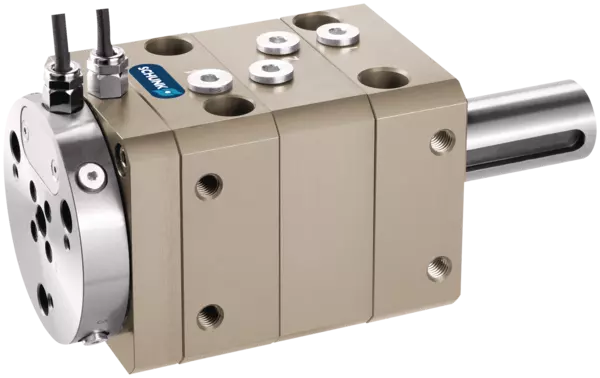

DDF-SE-080
ID 323280
- No. of fluid feed-throughs: 4
- Number of electrical feed-throughs: 6
- Force Fz max.: 2000 N
Technical details
| Max. drive speed [1/min] | 500.0 |
|---|---|
| Continuous torque [Nm] | 4.0 |
| Starting torque [Nm] | 6.0 |
| Angle of rotation [°] | > 360 |
| No. of fluid feed-throughs | 4.0 |
| Max. pressure per connection [bar] | 10.0 |
| Number of electrical feed-throughs | 6.0 |
| Max. voltage [V] | 60.0 |
| Max. current [A] | 1.0 |
| Weight [kg] | 3.3 |
| Min. ambient temperature [°C] | 5.0 |
| Max. ambient temperature [°C] | 60.0 |
| Length X [mm] | 80.0 |
| Width Y [mm] | 80.0 |
| Height Z [mm] | 127.0 |
| Max. static bending moment Mx [Nm] | 60.0 |
| Max. static bending moment My [Nm] | 60.0 |
| Moment Mx max. [Nm] | 50.0 |
| Moment My max. [Nm] | 50.0 |
| Force Fz max. [N] | 2000.0 |
Dimensions and maximum loads
Life time of seals
Dimensions and maximum loads
This is the max. total of all loads (acceleration forces and torques, process forces, emergency stops, etc.), which can affect a rotary feed-through, in order to ensure error-free function.

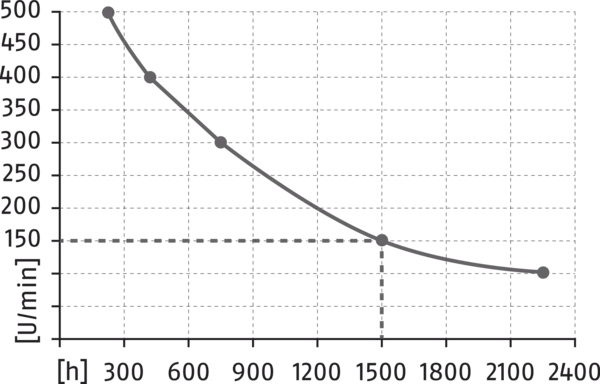

Life time of seals
Life time of seals (with 6 bar pressure); example: DDF-080 SE is driven at a constant 150 RPM in 3-shift operation (24 hours). Life time of seals: The seals should be replaced after 1,500 hours. (Seal kit available from SCHUNK)
モデルシリーズに関する一般注意事項
厳しい環境条件
厳しい環境条件 (クーラント関連、鋳造屑および研削屑など) 下で使用すると、ユニットの製品寿命が大幅に短くなる可能性があり、この場合は保証の対象外となることにご注意ください。しかしながら、多くの場合シュンクがソリューションを見つけることも可能です。サポートについてはお気軽にお問い合わせください。
ハンドリング重量
フランジにかかる負荷合計値です。設計に際しては力とトルクの許容限界を考慮する必要があります。ハンドリング重量の推奨値を超えると寿命が短くなることに注意してください。
型式
静止用途向けの穴およびネジ山
メディアの伝送
空圧および電気信号
ハウジング
ハウジングは高強度、硬質コーティングアルミ合金製。機能部品はすべて、硬化ステンレス鋼製です。
納品内容
注文品仕様のロータリーフィードスルー、機械接続用部品、安全に関する情報。各製品の説明書は、schunk.com/downloads-manualsからダウンロードいただけます。
保証
24 カ月
