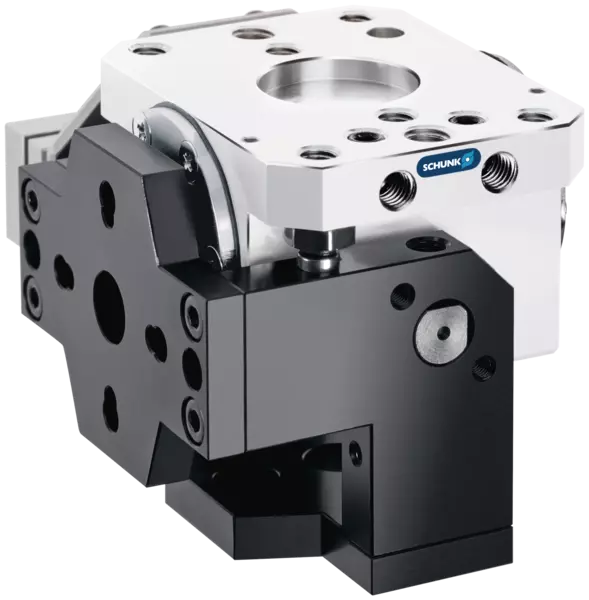

SKE 22 Illustration similar

SKE 22

ID 351102

Miniature swivel head SKE, Size: 22, pneumatic, without feed-through, Angle of rotation: 90 °, End position adjustability: 5 °

  • Torque: 0.75 Nm
Do you have a question?
Download CAD file
Technical details
Angle of rotation [°] 90
End position adjustability [°] 5
Torque [Nm] 0.75
IP protection class 30
Weight [kg] 0.2
Swiveling time (1x nominal rotation angle) without attached load [s] 0.8
Fluid consumption (2x nom. angle) [cm³] 20.0
Nominal operating pressure [bar] 4.0
Min. operating pressure [bar] 1.0
Max. operating pressure [bar] 6.0
Diameter of connecting hose 4.3 x 3 x 0.65
Min. ambient temperature [°C] 5.0
Max. ambient temperature [°C] 50.0
Repeat accuracy [°] 0.03
Length X [mm] 74.0
Width Y [mm] 56.0
Height Z [mm] 56.0
Moment My max. [Nm] 19.0
Force Fx max. [N] 380.0

Dimensions and maximum loads

Content available soon

Torque

Content available soon
Content available soon
Content available soon

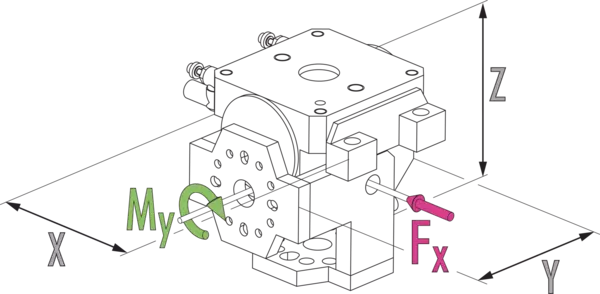

Dimensions and maximum loads

The indicated moments and forces are statical values and may appear simultaneously. Throttling has to be done for ensuring that the rotary movement takes place without impact or bouncing. Otherwise the service life reduces.

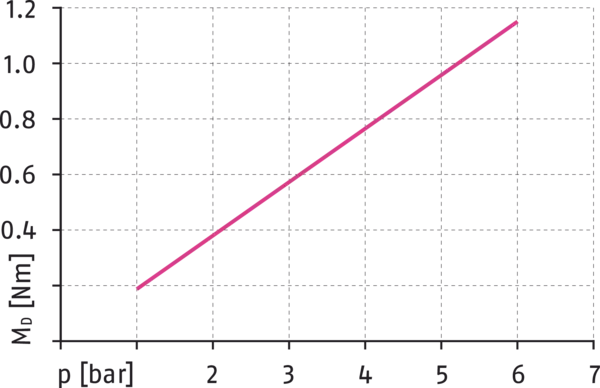

Torque

X-axis:
Pressure
Y-axis:
Torque

General notes about the series

Repeat accuracy
is defined as a distribution of the end position for 100 consecutive cycles.

Swiveling time
is the rotation time of pinion/flange around the nominal rotation angle. Valve switching times, hose filling times, or PLC reaction times are not included and are to be considered when cycle times are calculated.

Torque
is specified in relation to the rotary axis and at a nominal operating pressure of 4 bar.

Direct adaption of grippers
Some RH grippers can be directly flange-mounted to the SKE without an adapter plate. In this case, please note the screw connection diagram.

Housing material
Aluminum

Material of the (internal) functional components
Steel

Actuation
pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4].

Operating principle
double acting piston with geared transmission

Scope of delivery
Small parts for mounting, flow control couplings, Assembly and Operating Manual with Manufacturer's Declaration.

Warranty
24 months
