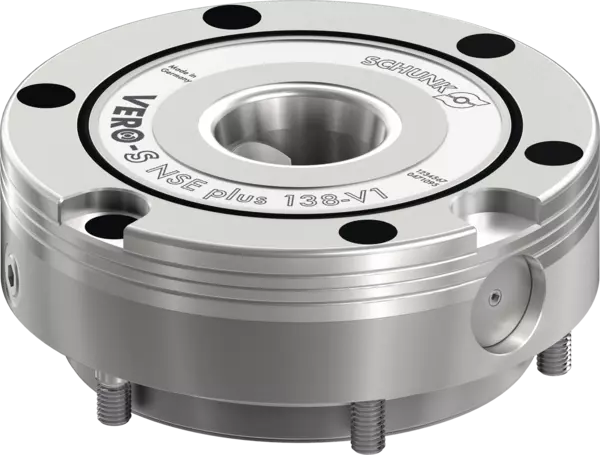

NSE plus 138-V1
Clamping modules
ID 471095
This product has been discontinued and is no longer available.
Alternative products:
Clamping module standard
Discontinuation information:
Discontinuation information:
- Replaced by: 1313723
- Spring-loaded system - Pneumatically opening
- Turbo function
- Anti-rotation protection two-way 90°
- Dynamic pressure monitoring of the clamping slide position "opened"
- Dimensions: Ø138 x Ø110 x 55,7 mm
- Pull-down force: 7.5 kN
- Pull-down force with turbo: 25 kN
- Actuation pressure: 6 bar
- Repeat accuracy: < 0.005 mm
- Weight: 4.4 kg
Technical details
| Durchmesser [mm] | 138.0 |
|---|---|
| Einzugskraft [kN] | 7.5 |
| Einzugskraft mit Turbo [kN] | 25.0 |
| Entriegelungsdruck [bar] | 6.0 |
| Wiederholgenauigkeit [mm] | < 0.005 |
| Gewicht [kg] | 4.4 |
Lieferumfang
Spannmodul, O-Ringe Ø 9 x 1,5, Abdeckkappen, Passschraube, Befestigungsschrauben, Betriebsanleitung
