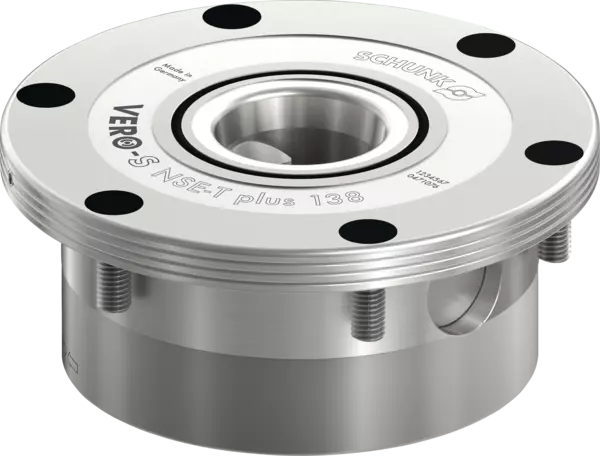

NSE-T plus 138
Modules de bridage
ID 471076
This product has been discontinued and is no longer available.
Alternative products:
Modulo di serraggio standard
Informazioni sulla sospensione:
Informazioni sulla sospensione:
- Sostituito da: 1313726
- Sistema a molla - Apertura pneumatica
- Funzione Turbo
- Dimensioni: Ø138 x Ø110 x 60 mm
- Forza traente: 6 kN
- Forza traente con funzione turbo: 20 kN
- Pressione di azionamento: 6 bar
- Precisione di ripetibilità: < 0.005 mm
- Peso: 3.7 kg
Technical details
| Diameter [mm] | 138.0 |
|---|---|
| Pull-down force [kN] | 6.0 |
| Pull-down force with turbo [kN] | 20.0 |
| Unlocking pressure [bar] | 6.0 |
| Repeat accuracy [mm] | < 0.005 |
| Weight [kg] | 3.7 |
Scope of delivery
Clamping module, O-rings Ø 9 x 1.5, cover caps, fastening screws, operating manual
