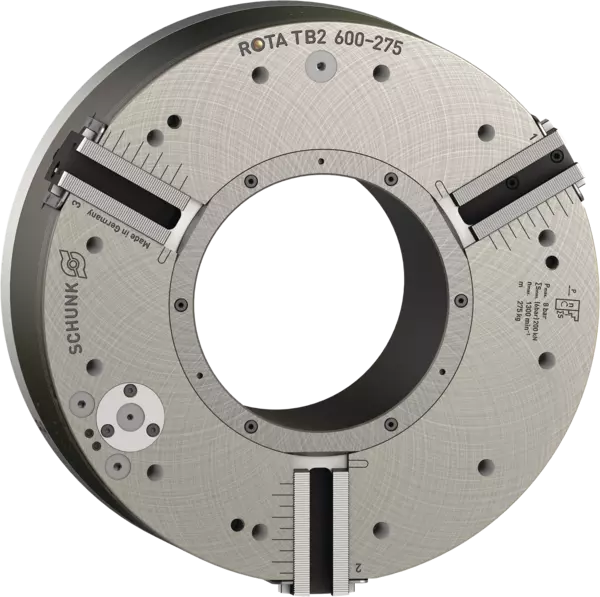

ROTA TB2 600-275 Z450-SV90°

ROTA TB2 600-275 Z450-SV90°

Pneumatic 3-jaw power chuck

ID 818350

Ready for shipment from 11 working days
Standard pneumatic power lathe chucks

Product features:
  • 3-jaw wedge-hook chuck
  • Through-hole: 275 mm
  • Spindle holder: Z450
  • Chuck side: 275 mm (10.83")
  • Machine side: 275 mm (10.83")
  • Jaw interface: 3/32" x 90° Nut 25,5H7
Technical data:
  • Stroke per jaw: 11.7 mm
  • Max. clamping force at 6 bar: 200 kN
  • Max. actuating pressure: 3 - 8 bar
  • Max. RPM: 1300 1/min
  • Weight: 370 kg
Spindle size Z450
Serration 3/32" x 90°
Max. RPM [1/min] 1300
Max. clamping force (at 6 bar) [kN] 200
Min. operating pressure [bar] 3
Max. operating pressure [bar] 8
Stroke/jaw [mm] 11.7
Air consumption/jaw stroke at 6 bar [l] 43.8
Moment of inertia [kgm²] 20.4
Weight [kg] 370

General notes about the series

Definition clamping force
The clamping force is the arithmetic sum of the individual forces occuring at the chuck jaws, distance “H“ at maximum pressure and maximum torque. The specifications exclusively refer to the grease used by SCHUNK.

Scope of delivery
Chuck, T-nuts with screws, chuck mounting bolts, 2 elbow-unions G 3/8“ on the distributor ring, set-screw to position the distributor ring, couplings for connection to the electric compressed air control unit, eye bolt, operating manual; without distributor ring mounting bracket
