ID 1339981

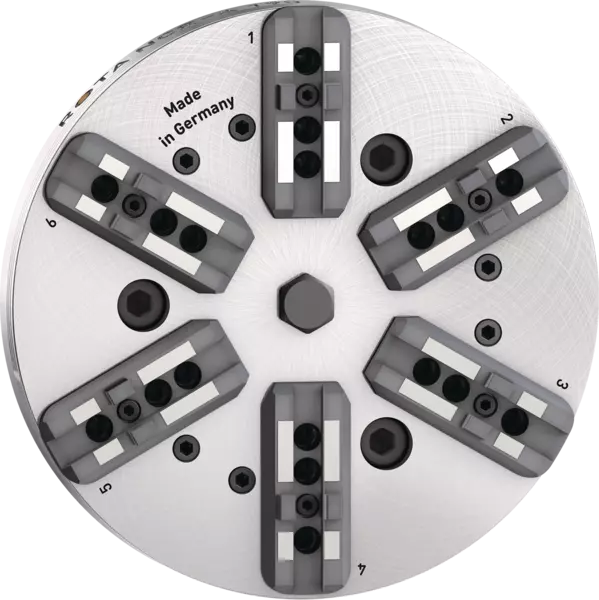

ROTA NCR-A 190 Z140-KV

Sealed 6-jaw power lathe chuck
Ready for shipment from 11 working days

Description

Standard power lathe chucks without through-hole

Product features:
  • 6-jaw compensation chucks
  • Sealed design
  • Pendular compensation: 2+2+2 jaws oscillating in pairs
  • Spindle holder: ISO 702-4 Nr. 5 (Z140)
  • Jaw interface: Tongue and groove
Technical data:
  • Stroke per jaw: 6 mm
  • Piston stroke: 13.5 mm
  • Pendular compensation: ± 1 mm
  • Max. clamping force: 36 kN
  • Max. actuating force: 22 kN
  • Max. RPM: 4000 1/min
  • Weight: 14 kg

Digital services ROTA NCR-A 190 Z140-KV

Matching with the product ROTA NCR-A 190 Z140-KV, we offer various digital services – the perfect complement for maximum efficiency, planning and process reliability.

Technical data ROTA NCR-A 190 Z140-KV

Spindle type ISO 702-4
Spindle size Nr. 5 (Z140)
Serration Tongue and groove
Max. RPM [1/min] 4000
Max. clamping force [kN] 36
Max. actuating force [kN] 22
Stroke/jaw [mm] 6
Piston stroke (H) [mm] 13.5
Pendular compensation [mm] ± 1
Moment of inertia [kgm²] 0.06
Weight [kg] 14
Scope of delivery
Lathe chuck, mounting screws for top jaws, chuck mounting screws, and operating manual

Product reviews ROTA NCR-A 190 Z140-KV

Please sign in to create reviews.

    Accessory ROTA NCR-A 190 Z140-KV

    The following components make the product ROTA NCR-A 190 Z140-KV even more productive – the right addition for maximum functionality, flexibility, reliability and process safety.

    Spare part ROTA NCR-A 190 Z140-KV

    For maximum reliability and longevity, SCHUNK offers the appropriate service for the productROTA NCR-A 190 Z140-KV.

    Downloads

    Catalogue Chapter: ROTA NCR-A

    Catalogue Pages: ROTA NCR-A 190

    Complete Catalogue Lathe Chucks 2022
