PMP

PMP

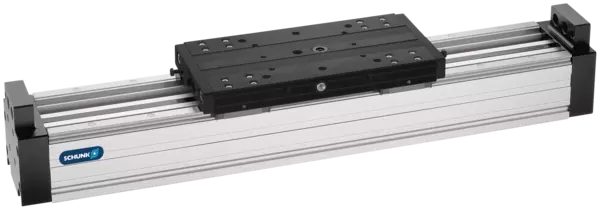

Gantry axis
Linear axis with integrated pneumatic drive cylinder and pretensioned recirculating ball-bearing guides, free from play

Advantages – Your benefits

  • High moment load capacity
    due to the use of high-performance profiled rail guides
  • High degree of rigidity
    due to special extruded profile geometry
  • A ground serration ensures high precision and surface quality of the base jaws as well as an increased service life
    through machined locating surfaces for the guide
  • Efficient complete solutions
    due to numerous axis combination possibilities
  • Manifold options
    (cable drag chain, bellow, intermediate position, etc.) for special optimization to fit your particular application
  • Standardized mounting bores
    for numerous combinations with other components from the modular system

Options and special information

  • Bellow version
    Increased degree of protection against penetrating materials; for use in dirty environments.
  • As standard, this module can be combined with numerous components from the modular system. We would be happy to assist you.
  • Food-grade lubrication
    The product contains food-compliant lubricants as standard. The requirements of standard EN 1672-2:2020 are not fully met. The relevant NSF certificates are available at https://info.nsf.org/USDA/Listings.asp using the lubricant information in the operating manual. Components such as rolling bearings, linear guides, or shock absorbers are not provided with food-compliant lubricants.
