AGE-XY-050-P Illustration similar

AGE-XY-050-P

Compensation unit XY

ID 324451

Compensation unit XY AGE-XY, Size: 050

  • Compensation XY: ± 2.5 mm
  • Workpiece weight: 6 kg
  • Recommended handling weight position storage: 1.5 kg
  • Deflection rotatory: ± 12 °
  • Position memory piston force: 180 N
  • Force Fz max.: 300 N
  • Force Fd max.: 1700 N
Compensation XY [mm] ± 2.5
Deflection rotatory [°] ± 12
Recommended handling weight, vertical [kg] 6
Recommended handling weight, horizontal [kg] 4
Recommended handling weight position storage [kg] 1.5
Locking force [N] 235
Max. load force locked [N] 130
Position memory piston force [N] 180
Max. radial force, position storage [N] 45
Rotation moment position storage [Nm] 1.2
Max. distance shifting force Z [mm] 120
Min. operating pressure [bar] 2.5
Max. operating pressure [bar] 8
Nominal operating pressure [bar] 6
Repeat accuracy [mm] 0.1
Robot-side connection ISO 9409-1-50-4-M6
Weight [kg] 0.47
Min. ambient temperature [°C] 5
Max. ambient temperature [°C] 60
Diameter D [mm] 65
Height Z [mm] 48

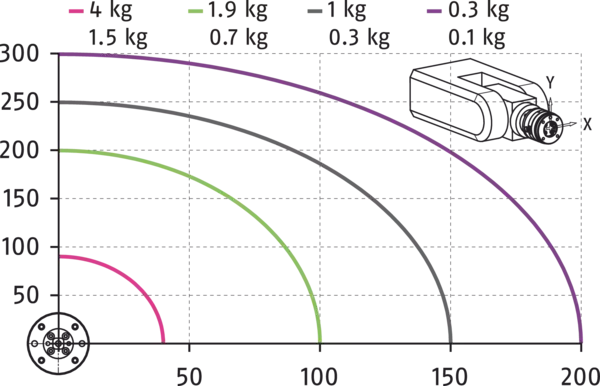

Moment Mx max. [Nm] 16
Moment My max. [Nm] 16
Moment Mz max. [Nm] 3.5
Force Fz max. [N] 300
Max. force Fd [N] 1700

General notes about the series

Harsh environmental conditions
Please note that use under harsh environmental conditions (e.g. in the coolant area, cast and grinding dust) can considerably reduce the service life of the units, and we will not take over any warranty. However, in many cases we can find a solution. Please contact us for assistance.

Handling weight
is the weight of the total load attached to the flange. When designing, the permissible forces and moments have to be paid attention to. Please note that exceeding the recommended handling weight will shorten the lifespan.

Guidance system
Robust sliding guide

Monitoring
by magnetic switch

Actuation
pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4].

Housing
hard anodized aluminum alloy, functional parts made of hardened steel

Scope of delivery
Robot-side mounting screws

Warranty
24 months
