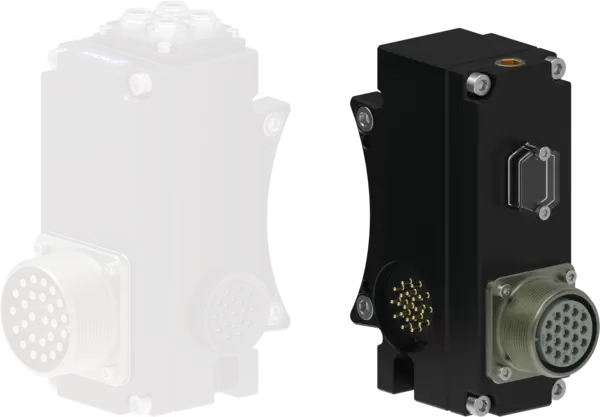

COS SA3-A

COS SA3-A

Feed-through modules

ID 1586715

Feed-through modules, SA2, Adapter side

  • Number of pin contacts: 13
Suitable on Tool
Screw connection diagram L
Transmission type Signal
Weight [kg] 0.59
Min. ambient temperature [°C] 5.0
Max. ambient temperature [°C] 60.0
Protection class IP IP64 (only in a coupled state)
Number of pin contacts 13.0
Nominal current [A] 5.0
Alternating voltage [V AC] 250.0
Direct voltage [V DC] 250.0
Electrical connection Amphenol MS threaded cap socket, 19 pins
Outlet connection radial
Special properties 13 pins for free use, rotary encoder switch for tool coding of 0 – 15 tools. Designed for max. 0.15 A and 24 V.

モデルシリーズに関する一般注意事項

厳しい環境条件
厳しい環境条件 (クーラント関連、鋳造屑および研削屑など) 下で使用すると、ユニットの製品寿命が大幅に短くなる可能性があり、この場合は保証の対象外となることにご注意ください。しかしながら、多くの場合シュンクがソリューションを見つけることも可能です。サポートについてはお気軽にお問い合わせください。

ハンドリング重量
フランジにかかる負荷合計値です。設計に際しては力とトルクの許容限界を考慮する必要があります。ハンドリング重量の推奨値を超えると寿命が短くなることに注意してください。
