CDB-8-11-ATC
Deburring tool
ID 1435108
This product has been discontinued and is no longer available.
Learn more and get in touch here.
Deburring tool CDB, Size: 008, no drive
- Compensation Z: 8 mm
- Force Fz max.: 67 N
Technical details
| Max. compensation angle X [°] | ± 5.5 |
|---|---|
| Max. compensation angle Y [°] | ± 5.5 |
| Compensation Z [mm] | 8.0 |
| Weight [kg] | 1.09 |
| Air connection hose | 4 mm |
| Tool holder | Blade holder for deburring tool types B, C, D, E and F |
| Tool change | Automatic |
| Axis fixation | integrated |
| Min. radial compensation force [N] | 25.0 |
| Max. radial compensation force [N] | 76.0 |
| Min. axial compensation force [N] | 13.0 |
| Max. axial compensation force [N] | 67.0 |
| Min. compensating pressure [bar] | 1.0 |
| Max. compensation pressure [bar] | 4.1 |
| Diameter D [mm] | 66.7 |
| Height Z [mm] | 193.7 |
| Force Fx max. [N] | 76.0 |
| Force Fy max. [N] | 76.0 |
| Force Fz max. [N] | 67.0 |

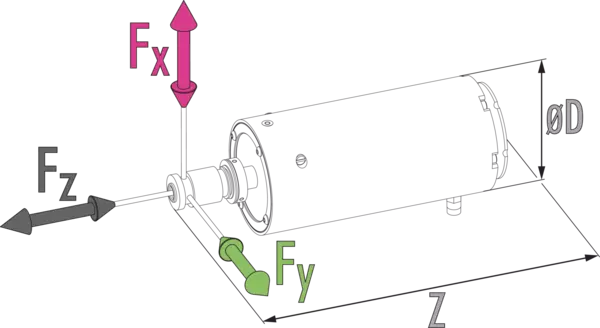

Dimensions and maximum loads
Dimensions and maximum loads
The indicated forces show the maximum payload.
Información general sobre la serie
Condiciones ambientales
Tenga en cuenta que la unidad no es adecuada para su uso en un área donde haya líquido de refrigeración o líquidos de corte.
Montaje
en el brazo del robot o como unidad estacionaria
Garantía
24 meses
