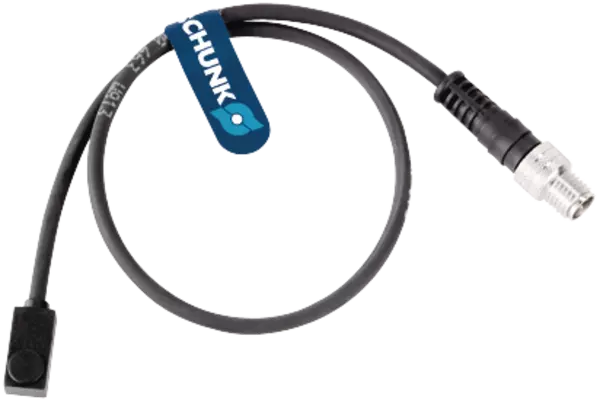

IN 8-S-M8
Inductive proximity switches
ID 301481
Inductive proximity switch IN
- Switching distance: 1.5 mm
- Rectangle sensor
- Width: 8 mm
- Height: 5 mm
- Switching type: PNP
- Closer
- Cable length: 30 cm
- Electrical connection: M8
- Nominal voltage: 24 V
Technical details
| 測定原理 | 誘導型 |
|---|---|
| 開閉機能 | クローザー |
| 開閉タイプ | PNP |
| スイッチングポイントの数 | 1 |
| 開閉距離 [mm] | 1.5 |
| 公称スイッチング距離からのスイッチングヒステレシス | < 10% |
| 最大スイッチング周波数 [Hz] | 1000.0 |
| 最低周囲温度 [°C] | -25.0 |
| 最高周囲温度 [°C] | 70.0 |
| センサーの LED ディスプレイ | なし |
| 電圧タイプ | DC |
| 公称電圧 | 24.0 |
| 最小作動電圧 | 10.0 |
| 最大作動電圧 | 36.0 |
| 電圧降下 [V] | 1.5 |
| 最大スイッチング電流 | 0.2 |
| 短絡防止 | あり |
| 極性反転防止 | あり |
| Housing material | PA 6、黒 |
| Cable connector/cable end | M8 |
| Cable length L [cm] | 30.0 |
| Cable diameter D [mm] | 3.5 |
| Cable sheath material | PUR |
| Min. bending radius (dynamic) [mm] | 35.0 |
| Min. bending radius (static) [mm] | 17.5 |
| Weight [kg] | 0.012 |
| Protection class IP (sensor, plugged) | 67 |
| Protection class | II |
*Tested cutting emulsions: r.rhenus TU 43P, Motorex Swisscool Magnum UX 550 and Oemeta 760 (1008339).
General notes about the series
SCHUNK gripping and rotary modules as well as linear axes and robot accessory components must always be monitored with the suitable sensors from SCHUNK, since these components are adapted to one another as effectively as possible.
If the key characteristics such as switching distance, switching function, hysteresis, and voltage are sufficiently similar, proximity switches from other manufacturers can generally be used instead of the inductive proximity switches (IN, INK) from SCHUNK.
Sensors of other manufacturers which are integrated into SCHUNK products, seldom provide excellent switching results. Moreover, we cannot ensure proper function or functional safety of them.
