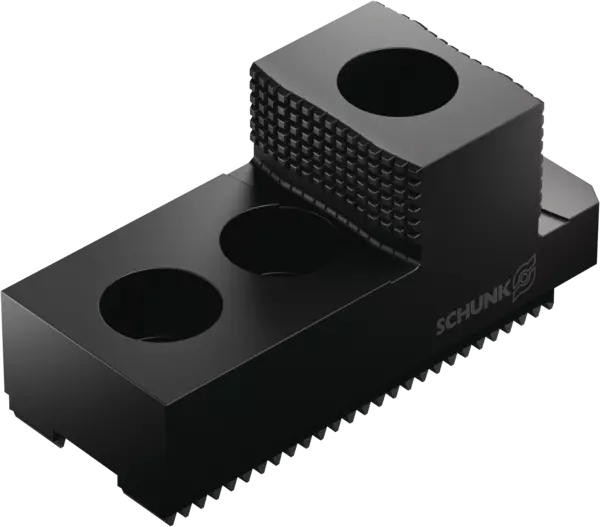

SHB-M 800
Hard stepped top jaws
ID 121160
SHB-M 800, Hard stepped top jaws
- Serration: Modul 2
- Groove width: 30 mm
- Delivery unit: 1 set = 3 pieces
Technical details
Product group | Hard stepped top jaws |
---|---|
Serration | Modul 2 |
Slot width N [mm] | 30 |
Width B [mm] | 78 |
Height H [mm] | 87 |
Length L [mm] | 190 |
Clamping depth T [mm] | 37 |
Clamping depth T1 [mm] | 52 |
Hole spacing a [mm] | 32 |
Hole spacing b [mm] | 50 |
Hole spacing c [mm] | 50 |
Screws | M24 |
Material | Steel 16MnCr5, hardened |
m/set [kg] | 15 |
