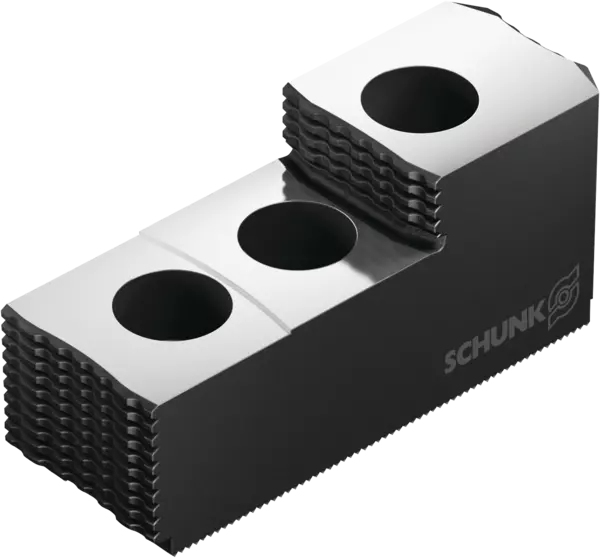

SP-HB 630 Illustration similar

SP-HB 630

Hard stepped top jaws

ID 125106

SP-HB 630, Hard stepped top jaws
  • Serration: 3/32" x 90°
  • Groove width: 30 mm
  • Delivery unit: 1 set = 3 pieces
Product group Hard stepped top jaws
Serration 3/32" x 90°
Slot width N [mm] 30
Width B [mm] 75
Height H [mm] 88
Length L [mm] 174.5
Clamping depth T [mm] 30
Hole spacing a [mm] 44.5
Hole spacing b [mm] 50
Hole spacing c [mm] 50
Screws M24
Material Steel 16MnCr5, hardened
m/set [kg] 15.46
