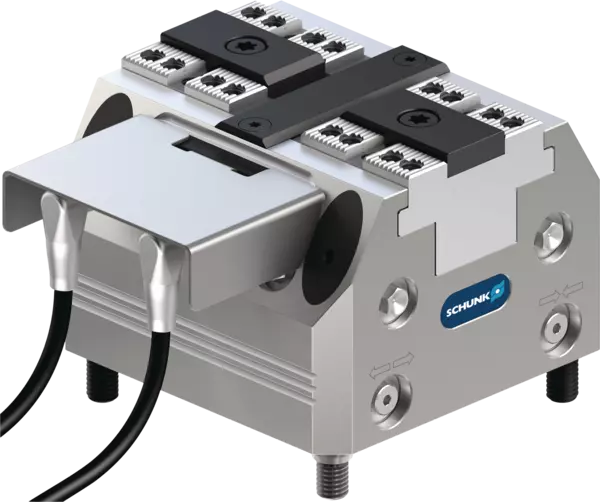

KSP3 100-AS-IM
Pneumatic 2-jaw clamping force blocks with inductive jaw monitoring
ID 1467556
Pneumatic clamping force block in standard version
Product features:
Product features:
- 2-jaw clamping force block
- Centric clamping
- Standard stroke
- Clamping force amplification/external securing
- Inductive jaw monitoring
- Base jaws: Fine serration and tongue and groove
- Dimensions: 100 x 100 x 69,2 mm
- Clamping force at max. operating pressure: 18 kN
- Additional clamping force resulting from spring assembly: 2.5 - 6.5 kN
- Stroke per jaw: 2 mm
- Max. jaw height: 60 mm
- Repeat accuracy: 0.01 mm
- Operating pressure: 3 - 9 bar
- Air consumption per double stroke at 6 bar: 1000 cm³
- Closing/opening time: 0.2 s
- Weight: 4 kg
Specifiche tecniche
| Stroke per jaw [mm] | 2.0 |
|---|---|
| Clamping force at max. operating pressure [kN] | 18.0 |
| Min. additional clamping force resulting from spring assembly [kN] | 2.5 |
| Max. additional clamping force resulting from spring assembly [kN] | 6.5 |
| Min. operating pressure [bar] | 3.0 |
| Max. operating pressure [bar] | 9.0 |
| Repeat accuracy of vise [mm] | 0.01 |
| Max. jaw height [mm] | 60.0 |
| Air consumption per double stroke at 6 bar [cm³] | 1000.0 |
| Closing/opening time [s] | 0.2 |
| Weight [kg] | 4.0 |
标配范围
虎钳、固定螺钉、盖塞、夹持套筒、装配螺钉 、感应接近开关、连接电缆、盖、使用说明书
夹持力
夹持力为最大压力下距离“H”的每个卡爪夹紧力的算数和。
采用电磁方式监控夹持滑块的位置
可以使用接近开关监控基爪终端位置之间的两个夹爪位置(例如“打开”和“夹紧”)。
虎钳的高度公差
±0.04 mm。
可应要求提供相同高度的强力夹具。
重复精度
100 个连续行程后终端位置分布的结果
维护和维修
保养 TANDEM 虎钳时,请使用我们的专用润滑脂 LP 410(订货号 0184213)
