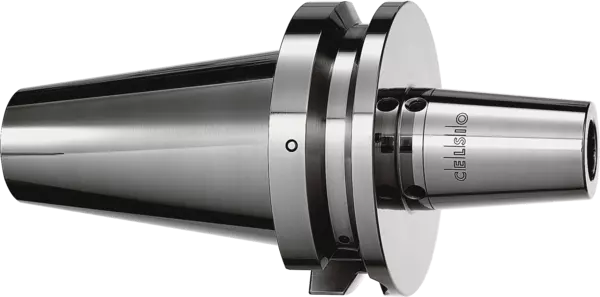

CELSIO JIS-BT 50 Ø12x160
Mandrino termoretraibile
ID 208563
CELSIO JIS-BT 50 Ø12x160, Portautensili
- Mandrino termoretraibile
- Serie: CELSIO
- Attacco portautensile: JIS-BT 50
- Diametro di serraggio: 12 mm
- Lunghezza di proiezione: 160 mm
- Concentricità: ≤ 0,003 mm misurata nel foro di serraggio (secondo la DIN 69882-8)
- Grado di bilanciatura: G2,5 a 25.000 giri/min o Umax< 1 gmm
- Coppia min.: 150 Nm
Specifiche tecniche
| Technology | Heat shrinking toolholder |
|---|---|
| Series | CELSIO |
| Toolholder interface | JIS-BT 50 |
| Toolholder standard | DIN ISO 7388-2 JD/JF |
| Clamping diameter D1 | 12 mm |
| D2 [mm] | 32.0 |
| D6 [mm] | 24.0 |
| Projecting length L1 [mm]/[inch] | 160 mm / 6.3" |
| L2 [mm] | 48.0 |
| L3 [mm] | 10.0 |
| L4 [mm] | 122.0 |
| G | M10x1 |
| Min. torque [Nm] | 150.0 |
| Weight [kg] | 3.4 |
| Coolant-proof | yes |
Run-out accuracy
≤ 0.003 mm measured in the clamping bore (according to DIN 69882-8)
Balancing grade
G2.5 at 25,000 RPM or Umax < 1 gmm
Tool shank quality
h6
Data carriers
Bore for data carrier as an option
Toolholder changes
For automatic toolholder changes
Coolant supply
Coolant supply according to ISO 7388 JD/JF
Bores for form JF are sealed with set-screws as transport safety
Length-setting screw
With adjustment screw for axial length adjustment
Balancing screw
With thread for balancing screws
Individual
Additional sizes and customized designs are available upon request
