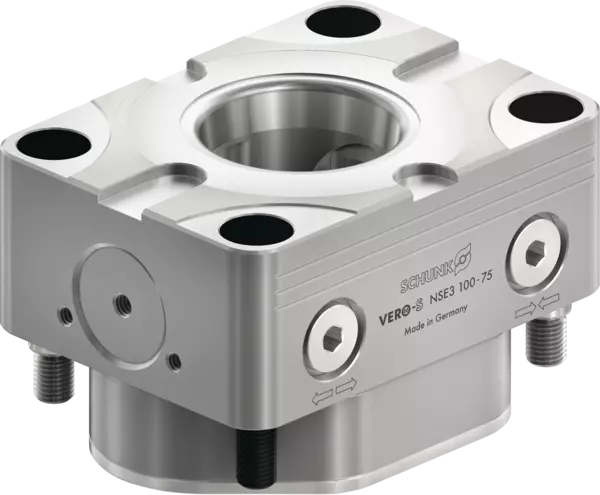

NSE3 100-75
Clamping modules
ID 1502948
Clamping module standard
- Spring-loaded system - Pneumatically opening
- Turbo function
- Dynamic pressure monitoring of the clamping slide positions
- Dimensions: 100 x 75 x 61 mm
- Pull-down force: 4 kN
- Pull-down force with turbo: 14 kN
- Repeat accuracy: < 0.005 mm
- Unlocking pressure: 6 bar
- Weight: 2.2 kg
Technical details
| 长度 [mm] | 100.0 |
|---|---|
| 宽度 [mm] | 75.0 |
| 下拉力 [kN] | 4.0 |
| 下拉力，带增压 [kN] | 14.0 |
| 解锁压力 [bar] | 6.0 |
| 重复精度 [mm] | < 0.005 |
| 重量 [kg] | 2.2 |
标配范围
夹持模块、紧固螺钉、装配螺钉、O 型圈 、罩盖、操作手册；无定位销
