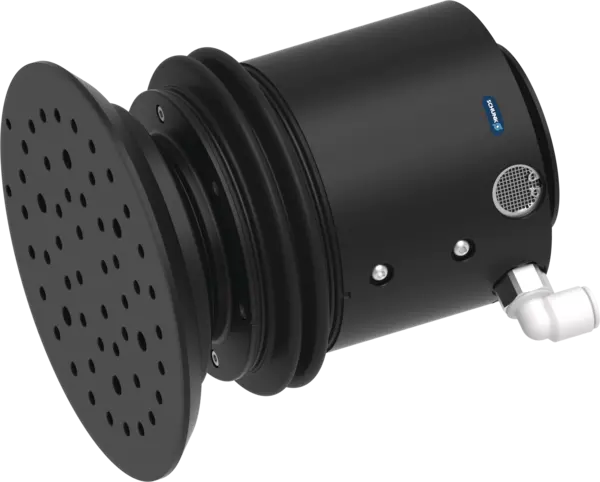

AOV-10-5
Random orbit sander
ID 1434817
This product has been discontinued and is no longer available.
Alternative products:
Random orbit sander AOV, Size: 10, pneumatic
- Compensation Z: 12.7 mm
- Force Fz max.: 66.7 N
Technical details
| Grinding disk size | 125 mm (5'') |
|---|---|
| Compensation Z [mm] | 12.7 |
| Recommended compensation path [mm] | ± 5 |
| Min. extension compensation force [N] | 13.3 |
| Max. extension compensation force [N] | 66.7 |
| Min. retraction compensation force [N] | 6.7 |
| Max. retraction compensation force [N] | 33.3 |
| Min. compensating pressure [bar] | 1.0 |
| Max. compensation pressure [bar] | 4.1 |
| Grinding stroke [mm] | 5.0 |
| Idle speed [1/min] | 10000.0 |
| Operating pressure [bar] | 6.2 |
| Noise emission [dB(A)] | < 85 |
| maximum air consumption [l/s] | 9.5 |
| Air connection motor | 10 mm |
| Compensation air connection | 4 mm |
| Weight [kg] | 2.68 |
| Min. ambient temperature [°C] | 5.0 |
| Max. ambient temperature [°C] | 35.0 |
| Diameter D [mm] | 125.0 |
| Height Z [mm] | 148.0 |
| Force Fz max. [N] | 66.7 |

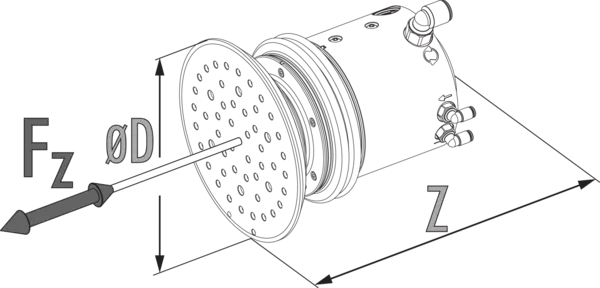

Dimensions and maximum loads
Dimensions and maximum loads
The indicated forces show the maximum payload.
Notas gerais sobre a série
Condições ambientais
Observe que a unidade não é adequada para uso em uma área onde existam refrigerantes ou fluidos de corte.
Montagem
no braço do robô ou como uma unidade estacionária
Atuação
pneumático, via ar comprimido filtrado (<5 µm, seco) e oleado (2-3 gotas por hora)
Garantia
24 meses
