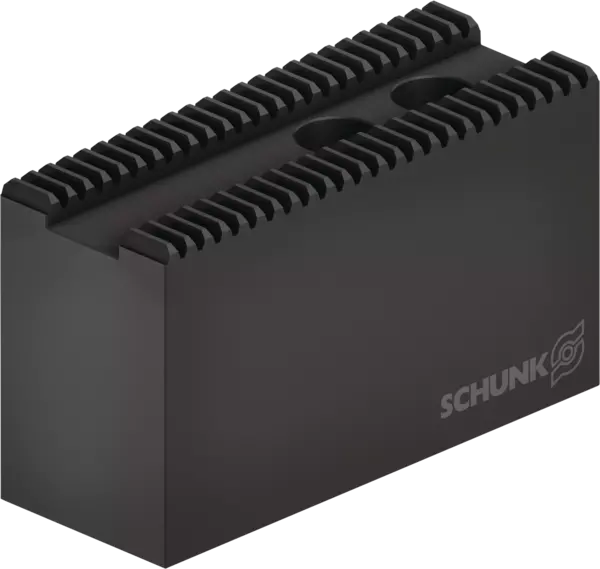

SWB-M 400/4
Straight soft top jaws, made of steel
ID 1457324
SWB-M 400/4, Straight soft top jaws, made of steel
Product features:
Product features:
- Serration: Modul 2
- Groove width: 25.5 mm
- Delivery unit: 1 set = 4 pieces
- Discover other matching top jaws in different dimensions! Click "Tools" and use our chuck jaw quickfinder.
- Would you like to customize the delivery quantity (two, three, four, six pieces)? Click "Configure individual chuck jaws".
Technical details
| Grupo de produtos | Castanhas de sobrepor macias retas, feitas de aço |
|---|---|
| Serração | Módulo 2 |
| Largura do slot N [mm] | 25.5 |
| Largura B [mm] | 60.0 |
| Altura H [mm] | 90.0 |
| Comprimento L [mm] | 157.0 |
| Espaçamento do furo a [mm] | 30.0 |
| Espaçamento do furo b [mm] | 35.0 |
| Parafusos | M20 |
| Material | Aço 16MnCr5 adequado para endurecimento externo |
| m/conjunto [kg] | 21.8 |
