- No. of fluid feed-throughs: 4
- Size of the E-connections on the output end: M8
- Torque: 4.6 Nm

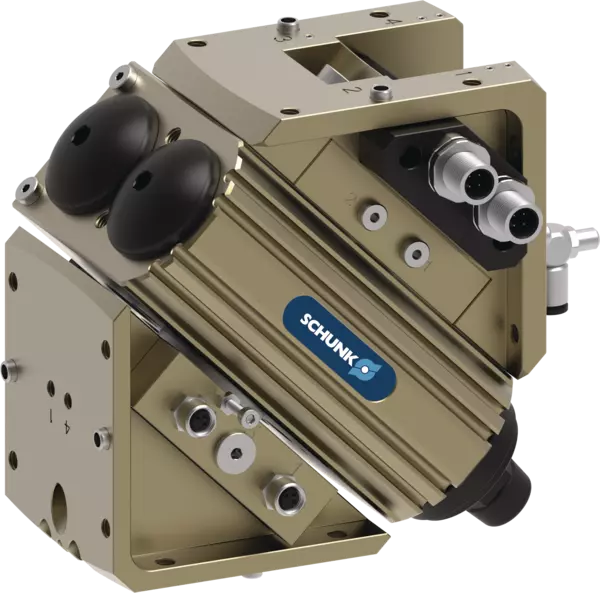

Technical data SRH-plus-D 25-W-M8-AS
|Angle of rotation [°]||180|
|End position adjustability [°]||3|
|IP protection class||67|
|Fluid consumption (2x nom. angle) [cm³]||88|
|Swivel time without a payload [s]||0.7|
|Nominal operating pressure [bar]||6|
|Min. operating pressure [bar]||3|
|Max. operating pressure [bar]||8|
|Diameter of connecting hose||6 x 3.9 x 1.05|
|No. of fluid feed-throughs||4|
|Max. pressure fluid feed-through [bar]||8|
|Min. ambient temperature [°C]||5|
|Max. ambient temperature [°C]||60|
|Repeat accuracy [°]||0.05|
|No. of E-fittings on the output end||4|
|Size of the E-connections on the output end||M8|
|Max. voltage [V]||24|
|Max. current per wire [A]||1|
|Max. current [A]||1|
|Length X [mm]||86|
|Width Y [mm]||131|
|Height Z [mm]||131|
|Moment Mx max. [Nm]||10.4|
|Max. axial force Fz max. [N]||800|
General notes about the series
is defined as a distribution of the end position for 100 consecutive cycles.
Customized angle of rotation
More swivel angles are available on request.
Torque in the end positions
Please note that the final angular degrees (approx. 2°) before the end position can only be approached using the force of a single drive piston. For this reason, double actuated modules only have about half the rated torque available in this area. An external stop can be used to provide the full torque even in the end positions.
is the rotation time of pinion/flange around the nominal rotation angle. Valve switching times, hose filling times, or PLC reaction times are not included and are to be considered when cycle times are calculated.
The technical data shown refers to an environment of 20 °C and atmospheric pressure.
Aluminum alloy, anodized
pneumatic, with filtered compressed air as per ISO 8573-1:2010 [7:4:4].
Double piston rack and pinion principle
Scope of delivery
Centering sleeves, O-rings for direct connection, assembly and operating manual with manufacturer’s declaration
Service life characteristics
