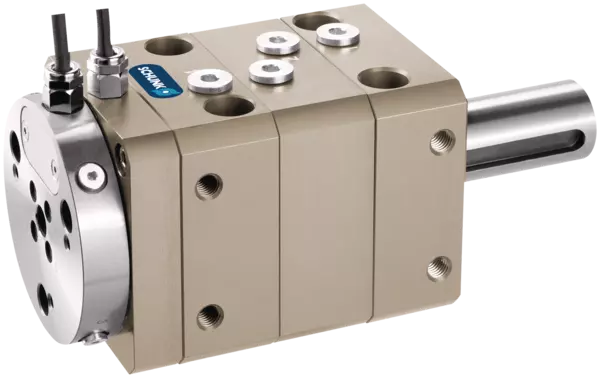

DDF-SE-120 Illustration similar

DDF-SE-120

ID 323285

Stationary rotary feed-through DDF-SE, Size: 120

  • No. of fluid feed-throughs: 6
  • Number of electrical feed-throughs: 8
  • Force Fz max.: 4000 N
Do you have a question?
Download CAD file
Technical details
Max. drive speed [1/min] 300
Continuous torque [Nm] 13
Starting torque [Nm] 20
Angle of rotation [°] > 360
No. of fluid feed-throughs 6
Max. pressure per connection [bar] 10
Number of electrical feed-throughs 8
Max. voltage [V] 60
Max. current [A] 1
Weight [kg] 9
Min. ambient temperature [°C] 5
Max. ambient temperature [°C] 60
Length X [mm] 120
Width Y [mm] 120
Height Z [mm] 221
Max. static bending moment Mx [Nm] 250
Max. static bending moment My [Nm] 250
Moment Mx max. [Nm] 180
Moment My max. [Nm] 180
Force Fz max. [N] 4000

Dimensions and maximum loads

Content available soon

Life time of seals

Content available soon
Content available soon
Content available soon

Dimensions and maximum loads

This is the max. total of all loads (acceleration forces and torques, process forces, emergency stops, etc.), which can affect a rotary feed-through, in order to ensure error-free function.

Life time of seals

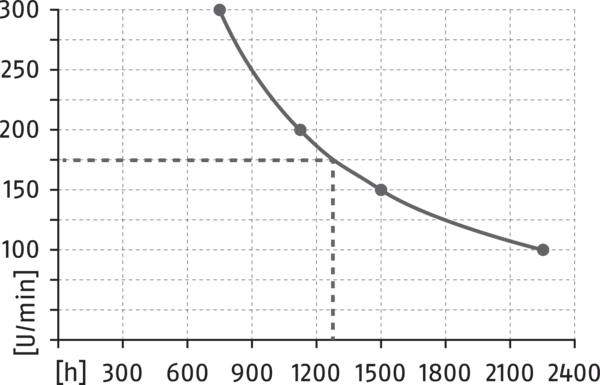

Life time of seals (with 6 bar pressure); example: DDF-120 SE is driven at a constant 175 RPM in a 3-shift operation (24 hours). Life time of seals: The seals should be replaced after 1,300 hours. (The seal kit is available from SCHUNK)

General notes about the series

Harsh environmental conditions
Please note that use under harsh environmental conditions (e.g. in the coolant area, cast and grinding dust) can considerably reduce the service life of the units, and we will not take over any warranty. However, in many cases we can find a solution. Please contact us for assistance.

Handling weight
is the weight of the total load attached to the flange. When designing, the permissible forces and moments have to be paid attention to. Please note that exceeding the recommended handling weight will shorten the lifespan.

Mounting
Bores and threads for stationary use

Media transmission
Pneumatic and electrical signals

Housing
The housing consists of high-strength, hard-coated aluminum alloy. The functional components are made of hardened steel.

Scope of delivery
Connection cable with open wire strands

Warranty
24 months

Drawings
Downloads
Spare parts
