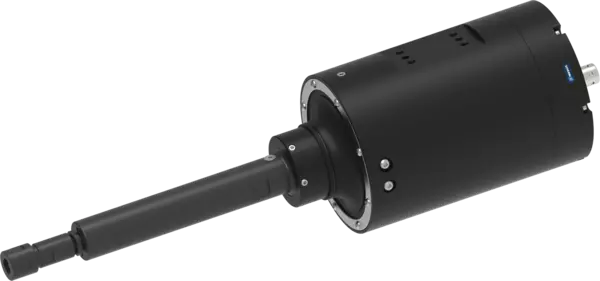

MFT-R 390
Deburring spindle
ID 1451627
This product has been discontinued and is no longer available.
Learn more and get in touch here.
Deburring spindle MFT-R, Size: 490, pneumatic
- Max. compensation X: ± 7.1 mm
- Max. compensation Y: ± 7.1 mm
Technical details
| Power [W] | 390.0 |
|---|---|
| Idle speed [1/min] | 5600.0 |
| Nominal speed [1/min] | 2600.0 |
| Max. compensation angle X [°] | ± 1.6 |
| Max. compensation X [mm] | ± 7.1 |
| Max. compensation angle Y [°] | ± 1.6 |
| Max. compensation Y [mm] | ± 7.1 |
| Axis fixation | integrated |
| Recommended compensation path [mm] | ± 3.6 |
| Min. radial compensation force [N] | 9.4 |
| Max. radial compensation force [N] | 70.0 |
| Min. compensating pressure [bar] | 1.0 |
| Max. compensation pressure [bar] | 4.1 |
| Operating pressure [bar] | 6.2 |
| Nominal torque [Nm] | 1.4 |
| Standstill torque [Nm] | 2.7 |
| Noise emission [dB(A)] | 50 |
| maximum air consumption [l/s] | 9.0 |
| Tool holder | Collet DA 6 mm and 8 mm |
| Air connection spindle | G1/4" |
| Compensation air connection | 4 mm |
| Weight [kg] | 4.42 |
| Min. ambient temperature [°C] | 5.0 |
| Max. ambient temperature [°C] | 35.0 |
| Diameter D [mm] | 112.7 |
| Height Z [mm] | 413.0 |
| Force Fx max. [N] | 70.0 |
| Force Fy max. [N] | 70.0 |

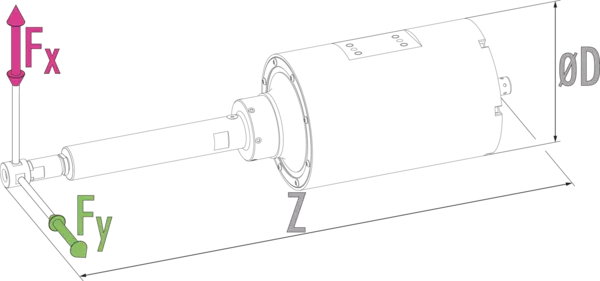

Afmetingen en maximaal toegelaten belasting
Afmetingen en maximaal toegelaten belasting
De opgegeven waarden voor koppel en kracht zijn statische waarden, gelden voor elke basisklem en kunnen gelijktijdig voorkomen.
Algemene opmerkingen over de reeks
Omgevingscondities
Let op: de eenheid is niet geschikt voor gebruik in een omgeving waar koelmiddelen of snijvloeistoffen aanwezig zijn.
Montage
op de robotarm of als stationaire eenheid
Aandrijving
pneumatisch, via gefilterde (< 5 µm, droog) en geoliede perslucht (3-4 druppels per minuut)
Garantie
24 maanden
