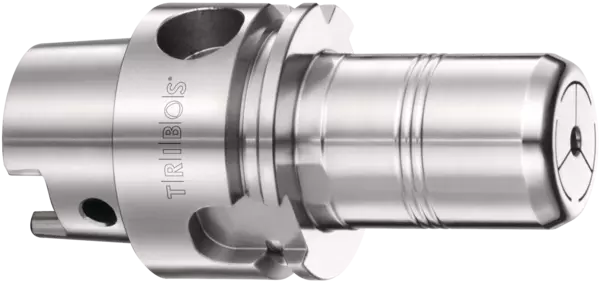

TRIBOS-RM HSK-A 32 Ø6x50
多边形刀柄
ID 225884
TRIBOS-RM HSK-A 32 Ø6x50, 刀柄
- 多边形刀柄
- 系列: TRIBOS-RM
- 刀具夹持接口: HSK-A 32
- 夹持直径: 6 mm
- 突出长度: 50 mm
- 回转精度: 2.5 x D 处 ≤ 0.003 mm
- 平衡等级: 转速为 25,000 RPM 时动平衡等级达到 G2.5 或 Umax < 1 gmm
- 最小扭矩: 10 Nm
Technical details
| Technologie | Portaherramientas de sujeción poligonal |
|---|---|
| Gammes | TRIBOS-RM |
| Interface de porte-outils | HSK-A 32 |
| Porte-outil standard | DIN ISO 12164-1 |
| Diamètre de serrage D1 | 6 mm |
| D2 [mm] | 20.0 |
| Porte à faux L1 [mm]/[pouce] | 50 mm / 2.0" |
| L2 [mm] | 32.0 |
| L4 [mm] | 30.0 |
| Couple de rotation min. [Nm] | 10.0 |
| Poids [kg] | 0.25 |
| Longueur standard | sí |
Version
Very stable design for fast and precise work
Run-out accuracy
≤ 0.003 mm at 2.5 x D
Balancing grade
G2.5 at 25,000 RPM or Umax < 1 gmm
Tool shank quality
h6
Data carriers
Bore holes for data carriers according to DIN 69873
Toolholder changes
For automatic toolholder changes
Coolant supply
With thread for coolant tube
Length-setting screw
Without adjustment screw for axial length adjustment
Individual
Additional sizes and customized designs are available upon request
