RM-F

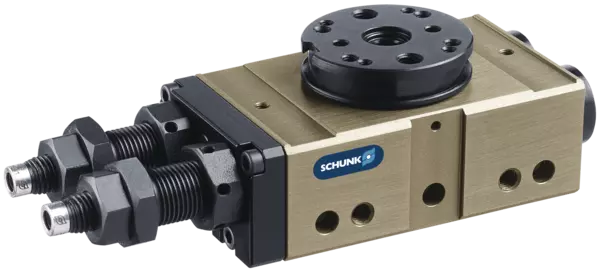

Flat swivel unit
This product is a legacy product.
Alternative products:
Lightweight pneumatic unit for fast swiveling tasks
Description
Advantages – Your benefits
- Continuous angle of rotation adjustment
over the entire range of rotation - Double piston principle
for scope-free end positions and high repeat accuracy - Integrated shock absorbers with adjustable absorption characteristics
for optimal damping - “Continuously adjustable intermediate position” option
can be done using an intermediate stop which can be integrated - Choice of electronic magnetic sensors or inductive proximity sensors
for absolute variability of position monitoring - Standardized mounting bores
for numerous combinations with other components from the modular system
Options and special information
- Version with intermediate position RZ
By mounting two pneumatically actuated cylinders, an intermediate position can be implemented, which can be flexibly adjusted over the entire swivel range. - Modular system
As standard, this module can be combined with numerous components from the modular system. We would be happy to assist you. - Food-grade lubrication
The product contains food-compliant lubricants as standard. The requirements of standard EN 1672-2:2020 are not fully met. The relevant NSF certificates are available at https://info.nsf.org/USDA/Listings.asp using the lubricant information in the operating manual. Components such as rolling bearings, linear guides, or shock absorbers are not provided with food-compliant lubricants.
